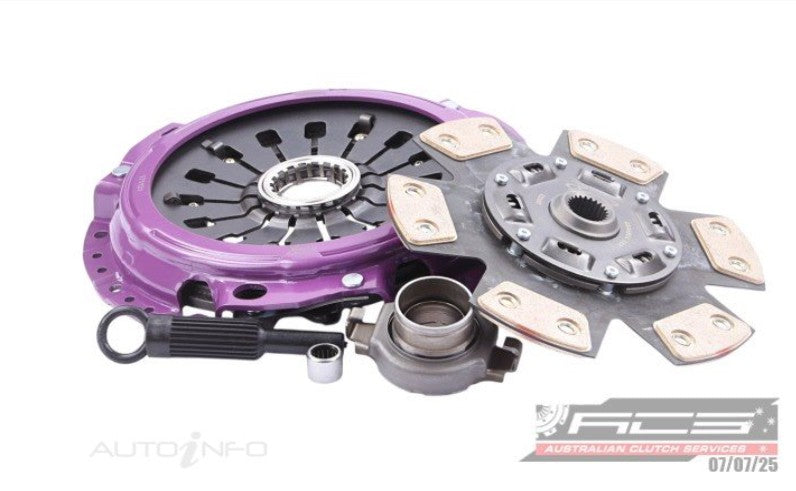

Xtreme Heavy Duty Button Clutch Kit fits Mazda RX-7 FD3SKMZ24002-1B
Xtreme Heavy Duty Button Clutch Kit - Mazda RX-7 FD3S
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
0In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 7-10 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription
The Stage 2 clutch uses an upgraded pressure plate and a ceramic friction disc in a cushioned configuration.
The Stage 2 clutch range is designed for road- and track-going vehicles that require higher torque capacity, temperature tolerance, and faster engagement. Clutch engagement is more aggressive than stage 1, so it is not recommended for daily-driven vehicles.
These kits feature a high-quality cover with a clamping force increased by 20-40% compared with standard, depending on the individual vehicle's demands. They use a ceramic friction disc with multiple segments to provide a similar working temperature range as ‘1B’ discs, but with slightly smoother engagement.
This kit is used less frequently, but it is available for situations such as low-speed trials, tracks where the operator encounters temperatures that are too high for organic and consequently need a higher-temperature clutch, but with better modulation than ‘1B’. Usually, customers only purchase this option if they have previously used a ‘1A’ and found it insufficient due to the operator’s driving style or the particular demands of the vehicle.
Product Specifications:
- Flywheel Step (mm): +0.5
- Clutch Disc Diameter (mm): 236
- Clutch Disc Spline Count: 23
- Clutch Disc Spline Diameter (mm): 26
- Disc Type: Sprung
- Friction Material: Ceramic
- Stage: 2
- Recommended Use: Track
- Clamping Force % Increase: 40%
- Torque (Nm) Inc FOS: 730
- Torque (ftlbs) Inc FOS: 540
- Spigot Bush/Bearing Included: Yes
- Aligning Tool Included: Yes
- Spline Grease Included: Yes
- Transport Weight (kg): 8.9
Vehicle Compatibility:
- Mazda RX-7 FD3S 13B-REW 1992 - 2002
Specifications
SKU KMZ24002-1B
Availability 7-10 Days
