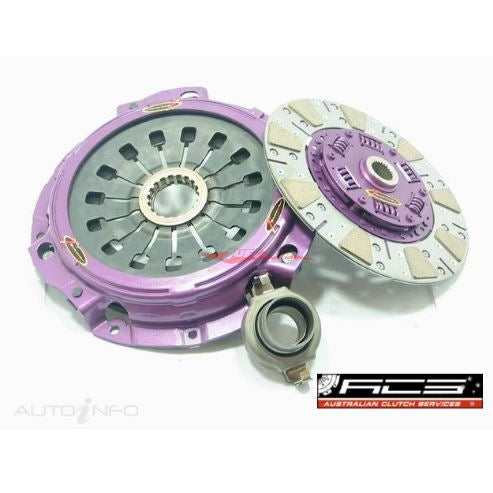

Xtreme Heavy Duty Cushion Button Clutch Kit - Mazda RX-7 FD3S

Xtreme Street brings racetrack-developed technology to your road car. Xtreme have performance clutch systems for street vehicles, ranging from heavy-duty organic systems, with OEM (or sometimes better than!) levels of drivability, right through to track-driven road registered race cars.

The Stage 2 clutch uses an upgraded pressure plate combined with a ceramic friction disc in sprung configurations. The stage two clutch range is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive than stage 1, so it is not recommended for daily driven vehicles.

These kits feature a high-quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle. They use a ceramic “paddle” friction disc which can result in more noise and harsher engagement.

Secifiactions:

Flywheel Step (mm): +0.5mm

Clutch Disc Diameter (mm): 236mm

Clutch Disc Spline Count: 23

Clutch Disc Spline Diameter (mm): 26.0mm

Disc Type: Sprung

Friction Material: Ceramic

Stage 2

Recommended Use: Performance Street

Clamping Force % Increase: 40%

Torque (Nm / ftlbs) Inc FOS: 730 / 540

Spigot Bush/Bearing Included: Yes

Aligning Tool Included: Yes

Spline Grease Included: Yes

Weight (kg): 8.5 kg

Vehicle Compatibility:

- Mazda RX-7 FD3S
