Description

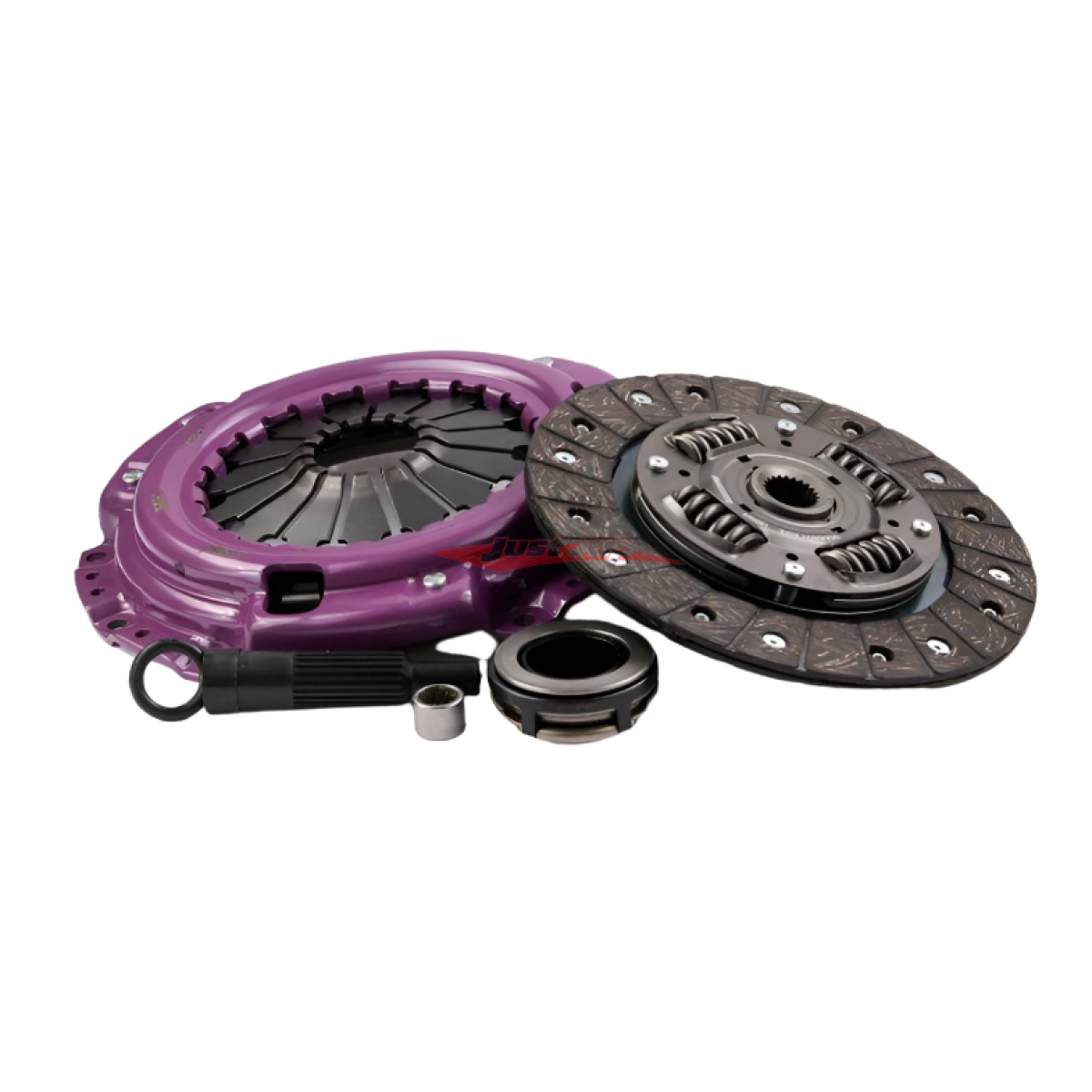

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure and an organic friction disc.
Stage 1 delivers substantial increases in performance and power-holding capability while retaining near factory-type driveability. It is designed primarily for high-performance road-going vehicles.
These kits feature a high-quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.
- Flywheel Step (mm) -7.5
- Clutch Disk Diameter (mm) 225
- Clutch Disk Spline Count 22
- Clutch Disk Spline Diameter (mm) 24.5
- Disk Type Sprung
- Friction Material Organic
- Recommended Use Street
- Clamping Force Increase 140%
- Torque (NM) inc FOS 290
- Torque (Ftlbs) Inc FOS 210
- Spigot Bush/Bearing included Yes
- Aligning toll included Yes
- Spline Grease included Yes
- Weight 7.1kg
Vehicle Compatibility:
- Mazda 3 BK 2003-2009 2.0L LFDE L4 DOHC
- Mazda 3 BK SP23 2003-2009 2.3L L3 L4 DOHC
- Mazda 3 BL 2009-2014 2.0L LFDE L4 DOHC
- Mazda 3 BL SP25 2009-2014 2.5L L5 L4 DOHC
Specifications
SKU KMZ23014-1A
Availability 1-3 Days
