Xtreme Heavy Duty Button Clutch Kit fits Nissan R31/R32/R33/R34 & VL Commodore (Push Type)KNI24001-1B
Xtreme DSB Heavy Duty Clutch Kit - Nissan Skyline R32/R33/R34 & VL Commodore (Push Type)Â
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
2In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 7-10 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription
Authorised Xtreme Clutch Dealer.
Not the Clutch You Are Looking For?? Contact Us Today Many More Clutches Available
Please Contact Us for Availability
The stage two clutch range is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive than stage 1, so it is not recommended for daily driven vehicles.

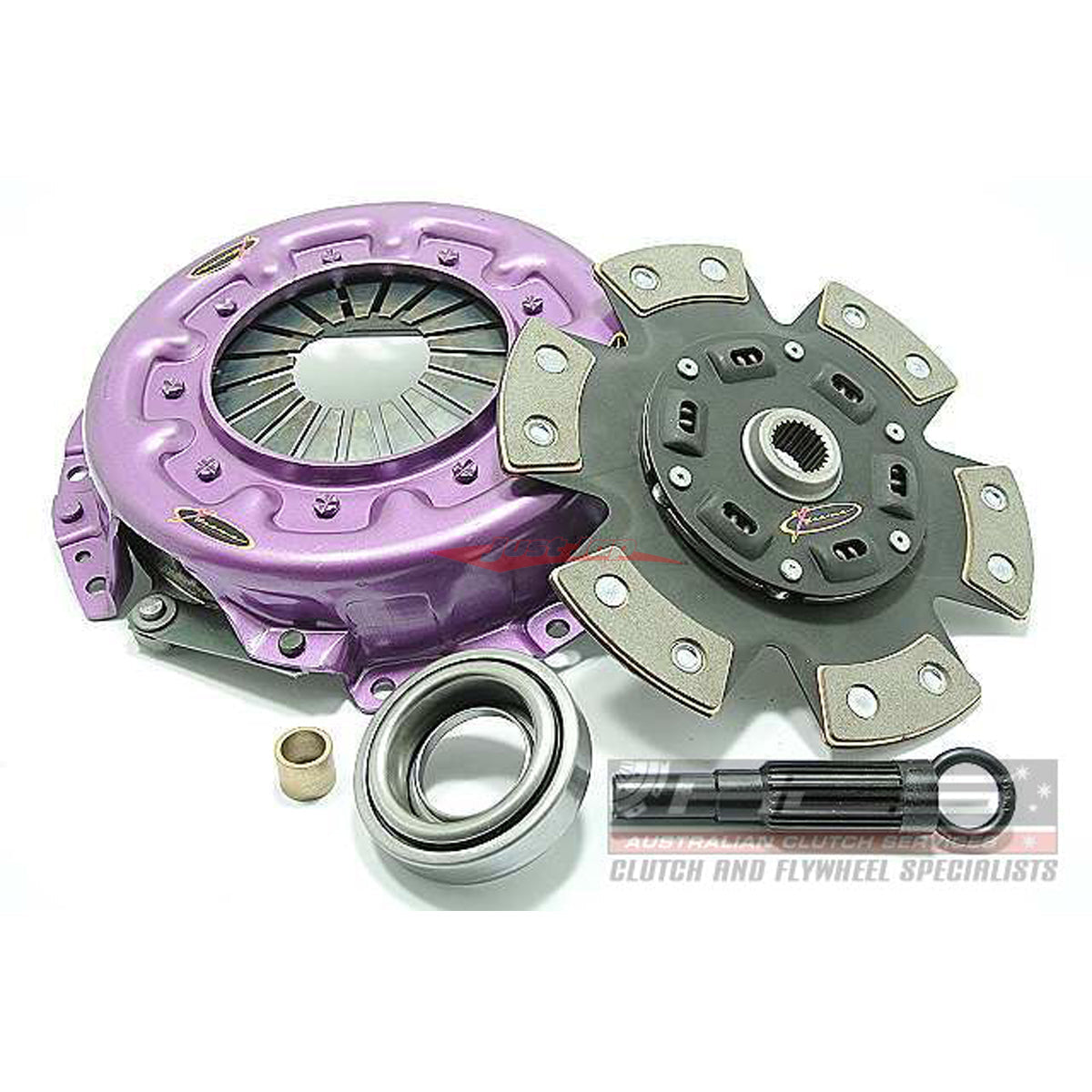

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle. They use a ceramic friction disc with multiple segments to provide a similar working temperature range as ‘1B’ discs but with slightly smoother engagement.
This kit is used more rarely, but it is available for situations such as low speed trial, track where the operator encounters temperatures that are too high for organic and consequently need a higher temperature clutch but with better modulation than ‘1B’. Usually, customers only purchase this option if they have previously used a ‘1A’ and found it insufficient due to the operator’s driving style or the particular demands of the vehicle.
- Flywheel Step (mm): Flat
- Clutch Disc Diameter (mm): 240
- Clutch Disc Spline Count: 24
- Clutch Disc Spline Diameter (mm): 25.4
- Disc Type: Sprung
- Friction Material: Ceramic
- Stage: 2
- Recommended Use: Track
- Clamping Force % Increase: 20%
- Torque (Nm) Inc FOS: 570
- Torque (ftlbs) Inc FOS: 420
- Spigot Bush/Bearing Included: Yes
- Aligning Tool Included: Yes
- Spline Grease Included: Yes
- Transport Weight (kg) 9.4
Vehicle Compatibility:
- Nissan R31 Skyline GTS/GTS-R RB20DET & RB30E
- Nissan R32 Skyline GTS/T RB20DE/T & RB25DE
- Nissan R32 Skyline GTR RB26DETT
- Nissan R33 Skyline GTS/T RB25DE/T
- Nissan R34 Skylin RB25DE
- Holden VL Commodore RB30E
Specifications
SKU KNI24001-1B
Availability 7-10 Days
