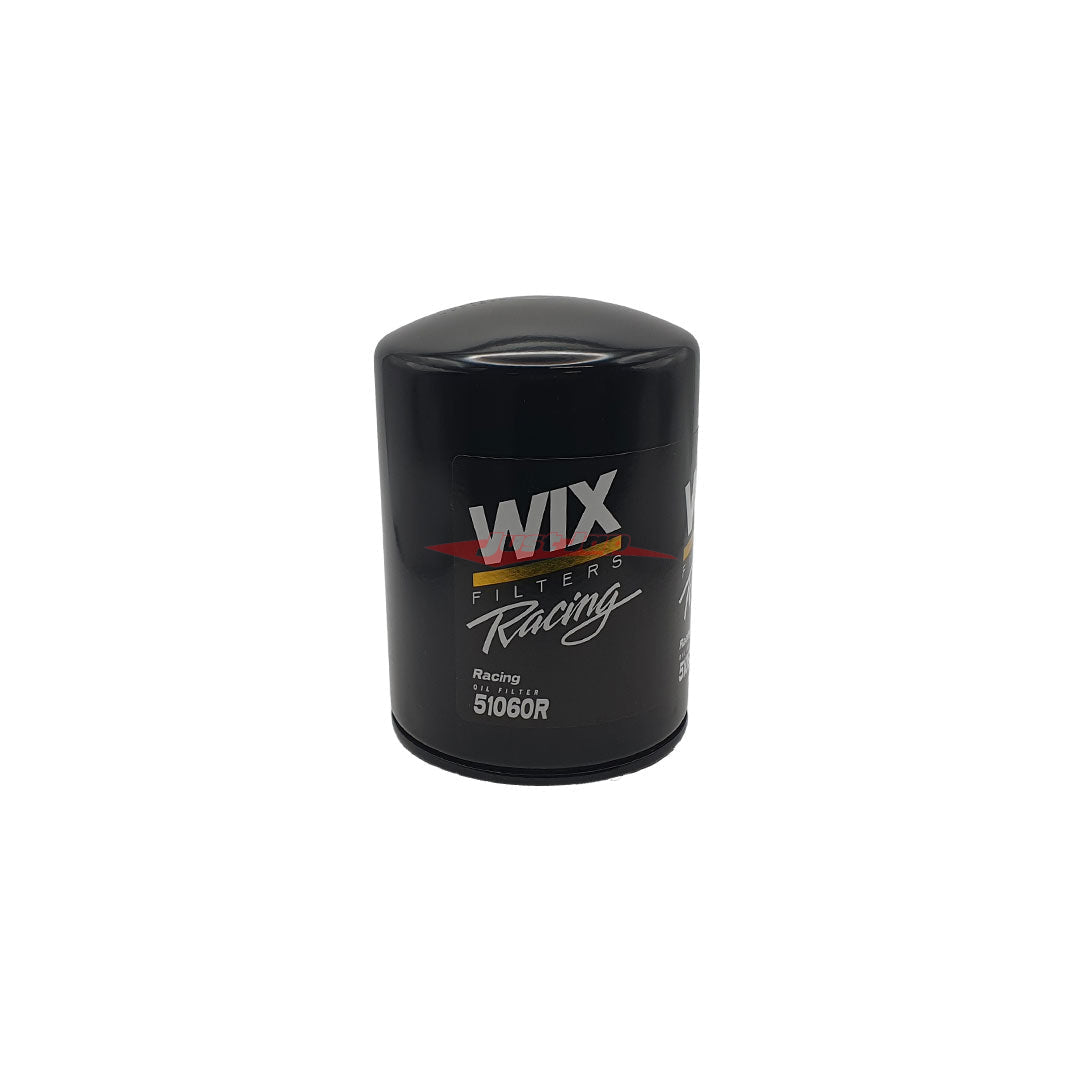

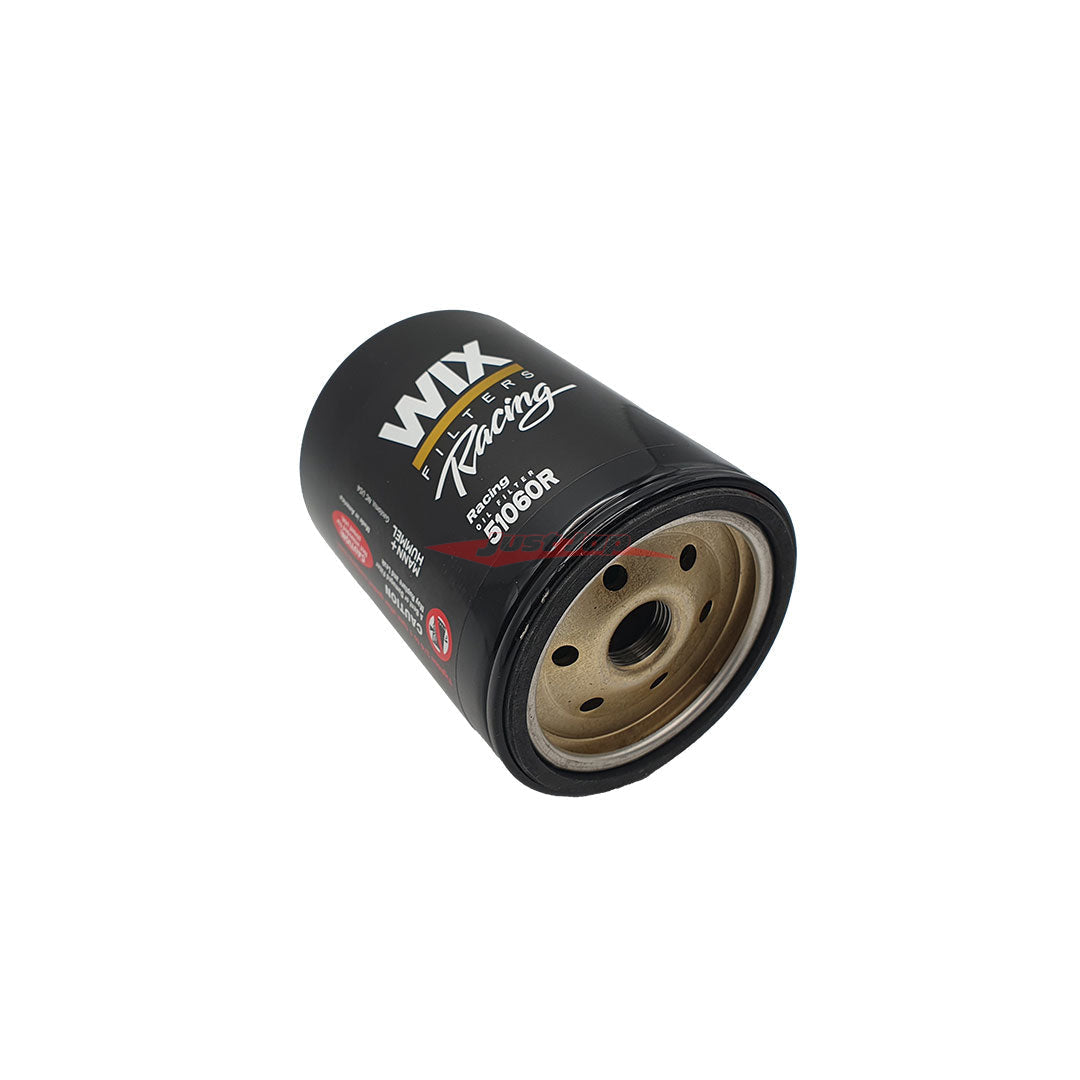

WIX 51060R Performance Oil Filter (Race) Fits AMS & GT1R R35 GTR Oil Filter Relocation Kits51060R
Description
WIX oil filters play a vital role in your vehicle's lubrication system, protecting your engine from premature wear. As gearheads know, every moving part in the engine requires clean oil! WIX oil filters trap more dirt than the leading national brand, and they keep filtering long after the competition has completely quit!
WIX patented the first spin-on oil filter in 1954 and has been at the forefront of filter technology ever since. Canister-style oil filters feature strong, full-metal base plates to prevent leaks at the double seam under severe driving conditions. They also offer glass-enhanced media that improve each filter's ability to catch and hold engine-damaging dirt. Choose the WIX oil filter to fit your make and model for a cleaner-running engine over many extra miles.
Most filters have a bypass that opens around 10psi differential oil pressure. What this means is that when the pressure on the inlet side of the filter becomes 10psi higher than the pressure on the outlet side of the filter, the bypass opens, and you get unfiltered oil passing into the engine. This is bad for obvious reasons.
The WIX Racing filters are designed for thicker racing oils and higher oil flow rates (which come with increased RPM). While their filtration spec isn’t quite as good ~60 microns vs. ~35 microns, all of your oil is being filtered, and 60 microns is better than no filtration! The Racing filter flows 28gpm, whereas the XP version flows 9-11gpm.
Manufacturer's Part Number: 51060R
Oil Filter Style: Canister
Thread Size: 13/16-16
Height (in/mm): 5.178” / 131.5mm
Outside Diameter: 3.660 “ / 92.9mm
Filter Bypass Relief Valve: No
Anti-Drain Back Valve: Yes
Maximum Flow Rate: 28 GPM
Normal Micron Rating: 61
Gasket Outside Diameter (in/mm): 3.444” / 87.5mm
Gasket Inside Diameter (in/mm): 3.100” / 78.7mm
Gasket Thickness (in/mm): 0.260” / 6.6mm
