Tomei Full Cast Turbo Outlet Dump Pipe Set Fits R32/R33/R34 Skyline GTR & C34 Stagea 260RS (RB26DETT)421001
Tomei Full Cast Dump Pipes - Nissan R32/R33/R34 Skyline GTR & C34 Stagea 260RS (RB26DETT)
Description
Dramatically reduces the secondary back pressure!
The stock turbo outlet tends to build up too much secondary back pressure due to its restrictive capacity.
The new design is capable of supporting even higher flow compared to the stock design, and removing the
intake/compressor housing relieves.
FEATURE / SPEC
| TOMEI | STD | |||||
|---|---|---|---|---|---|---|
| SUS316 Full Cast | BNR32/BCNR33 | BNR34 | ||||
| Fr | Re | Fr | Re | Fr | Re | |
| MATERIAL | SUS316 | CASTED STEEL | PRESSED & WELDED | |||
| EXIT DIA. | approx.Φ66 | approx.Φ58 | approx.Φ55 | |||
| VOLUME | 800cc | 900cc | 630cc | 730cc | 600cc | 725cc |
| PIPE THK. | approx.2.8mm | approx.4.5mm | approx.2.0mm | |||
| FLANGE THK. | approx.11mm | approx.11~14mm | approx.11.6mm | |||
| WEIGHT | 1.85kg | 2.10kg | 2.3kg | 2.7kg | 1.75kg | 1.9kg |
The new model is designed to clear the air intake piping and the turbo compressor housing without the concaves from the previous model that helps even smoother exhaust flow. The new model is made of high-quality SUS316 instead of the previous model's SUS304 to withstand even more severe conditions.
Wrenching clearance for easy installation.
Designed for hassle-free installation. We have incorporated a dimple in the pipe where the bolt for the flange is located. To allow ease of access to both bolts and nuts for a quick, trouble-free bolt-on application.
Wide mouth design & Step-less connection with a 70mm front pipe.
Dumps the exhaust gas from the turbo straight onto the front pipe without reducing the flow speed.

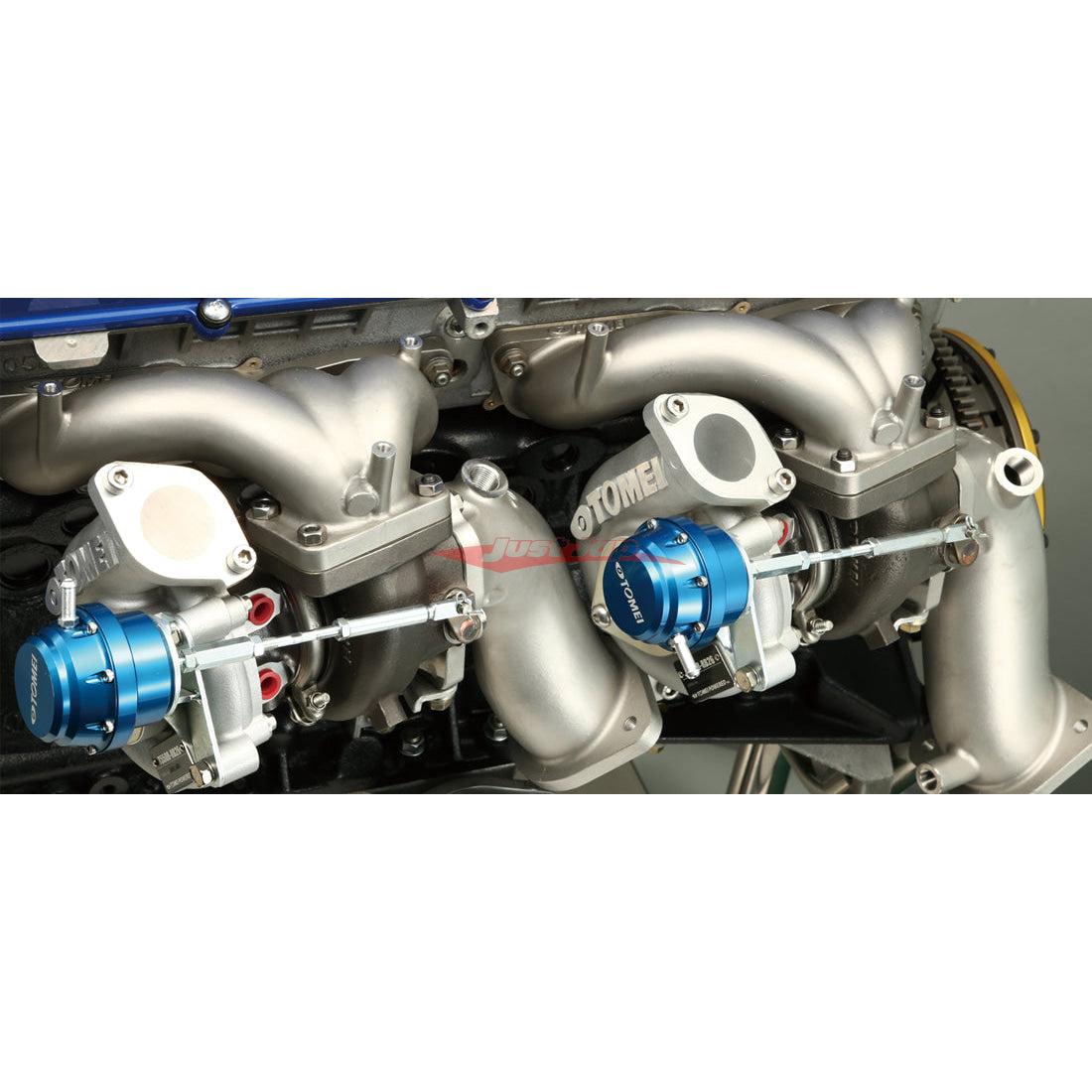

Updated to the same finish as the Tomei Full Cast Exhaust Manifold (sold separately) for a matching and better appearance.

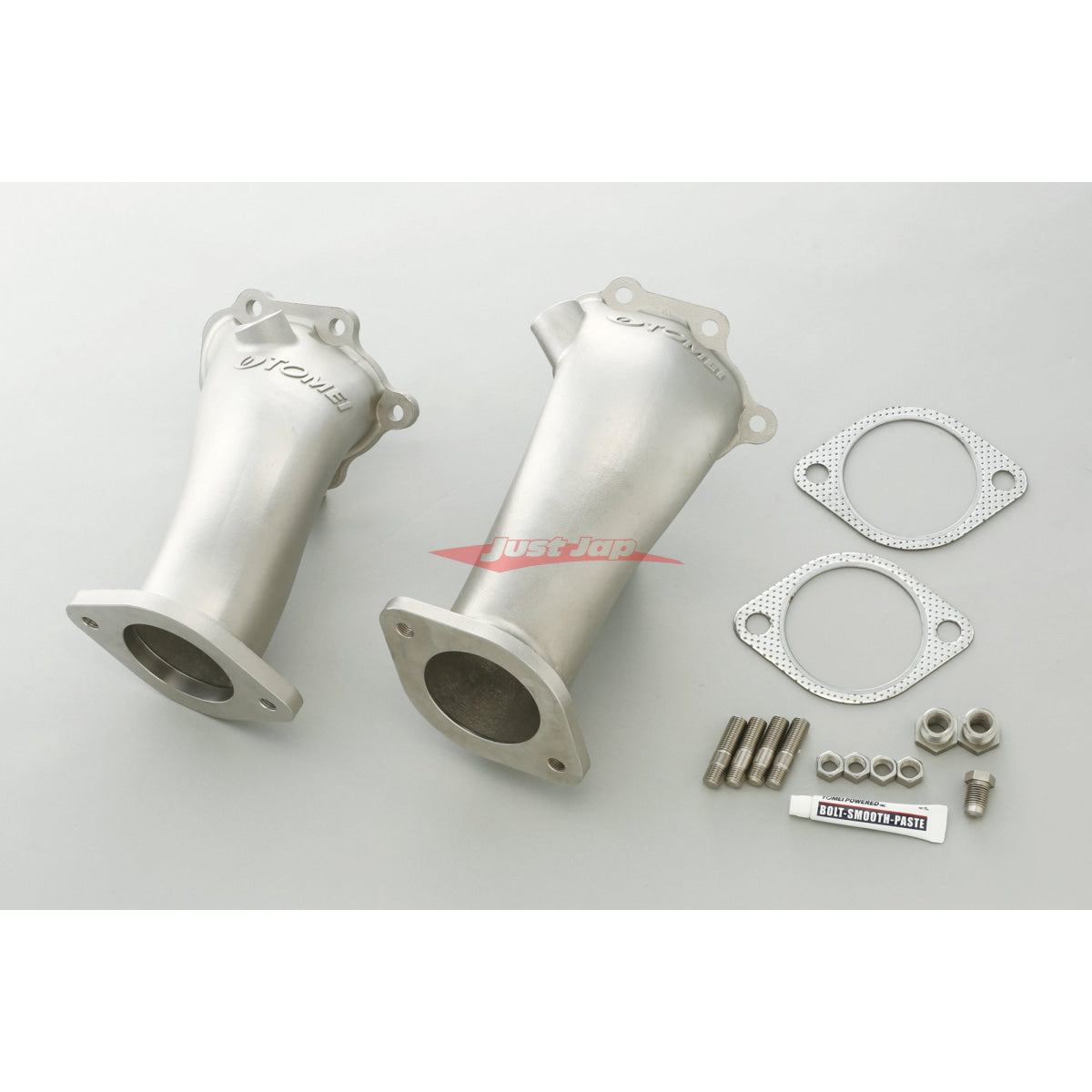

KIT CONTENTS
- Outlet Pipe Set (Front & Rear Side)
- Outlet Pipe Gaskets (Front Pipes Side)
- Blind Bolt
- Nut
- BNR32 O2 Adapters
- Stud Bolt
Vehicle Compatibility:
- Nissan BNR32 Skyline GTR
- Nissan BCNR33 Skyline GTR
- Nissan BNR34 Skyline R34 GTR (Use without Exhaust Gas Temp Sensor)
- Nissan WGNC34 Stagea 260RS
