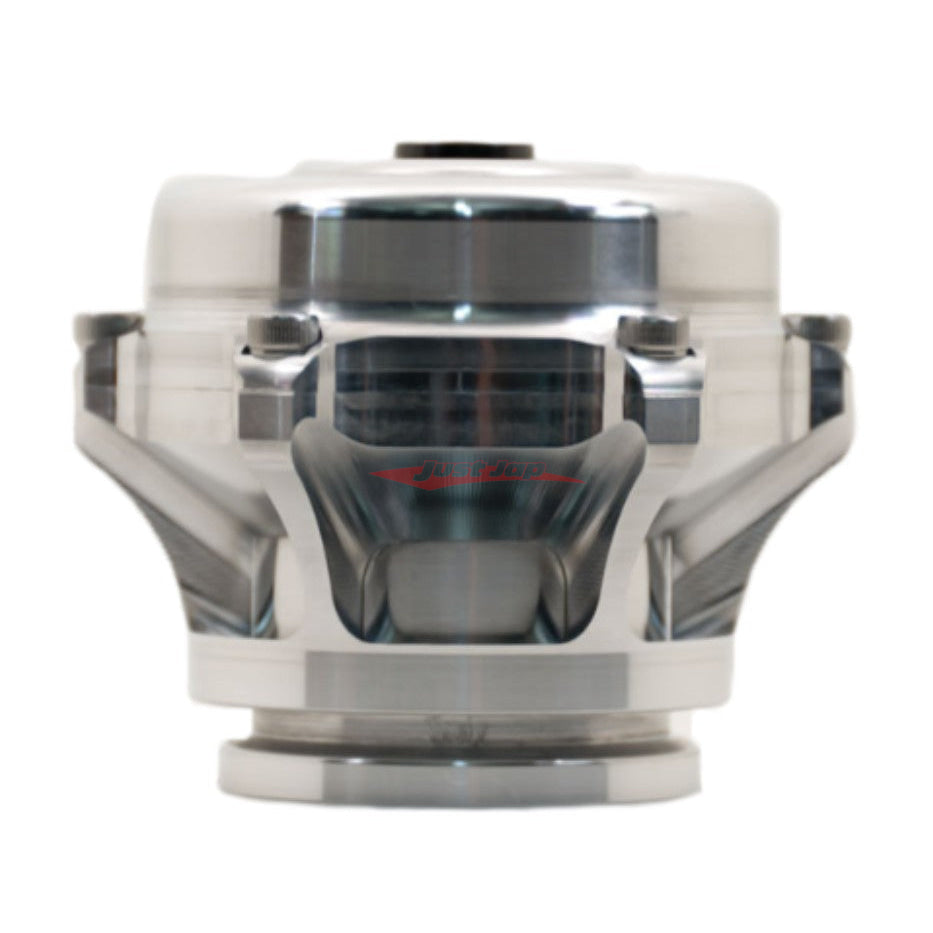

TiAL Sport 50mm Q Series Blow Off Valve 11psi Spring (Silver)002571
TiAL Sport 50mm Q Series Blow Off Valve 11psi Spring (Silver)
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
0In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 7-10 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription
The first revision of TiAL's original BV50 blow-off valve, the 50mm Q Series BOV flows 60% more than its predecessor, making it the highest flowing 50mm BOV on the market, and bolts to any standard TiAL flange without welding.
An included weld mounting flange (available in aluminum, mild steel, and stainless steel) cut for 2-1/2'' pipe, and a CNC-machined aluminum V-band mounting clamp with stainless steel hardware create a durable, corrosion-free appearance.
A banjo-type aluminum air fitting and bolt with a 1/4" hose barb allow quick actuator response. Option springs are available to accommodate various vacuum levels and supercharged applications.
Specifications:
- For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.) The body and all internal components of the blow-off valve are CNC-machined from aluminum alloy. It features a large 1.98'' (50.5mm) valve.
- The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long-lasting, corrosion-free appearance.
- The valve seal utilizes a high-temperature-resistant o-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are hard anodized-coated for wear resistance.
- The Blow Off Valve also comes with a machined aluminum banjo-type air fitting and bolt, with oversized 10mm hose barb for quick actuator response. The actuator has a high-temperature silicone-reinforced diaphragm for long life.
- An aluminum weld base mounting flange is furnished with each unit

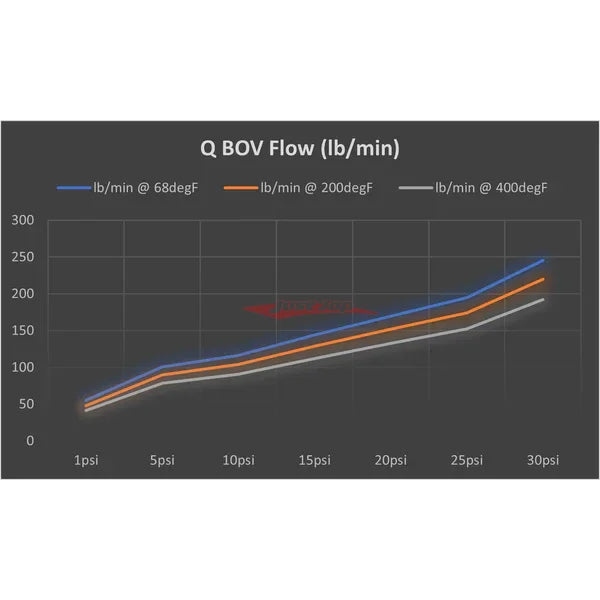

- Through countless hours of R&D, Tial was able to make the same size valve flow a staggering 60% more than the original design - that means 60% more air is blown off per cycle! This is the highest-flowing BOV on the market
- A single Q BOV can support up to 1,800hp

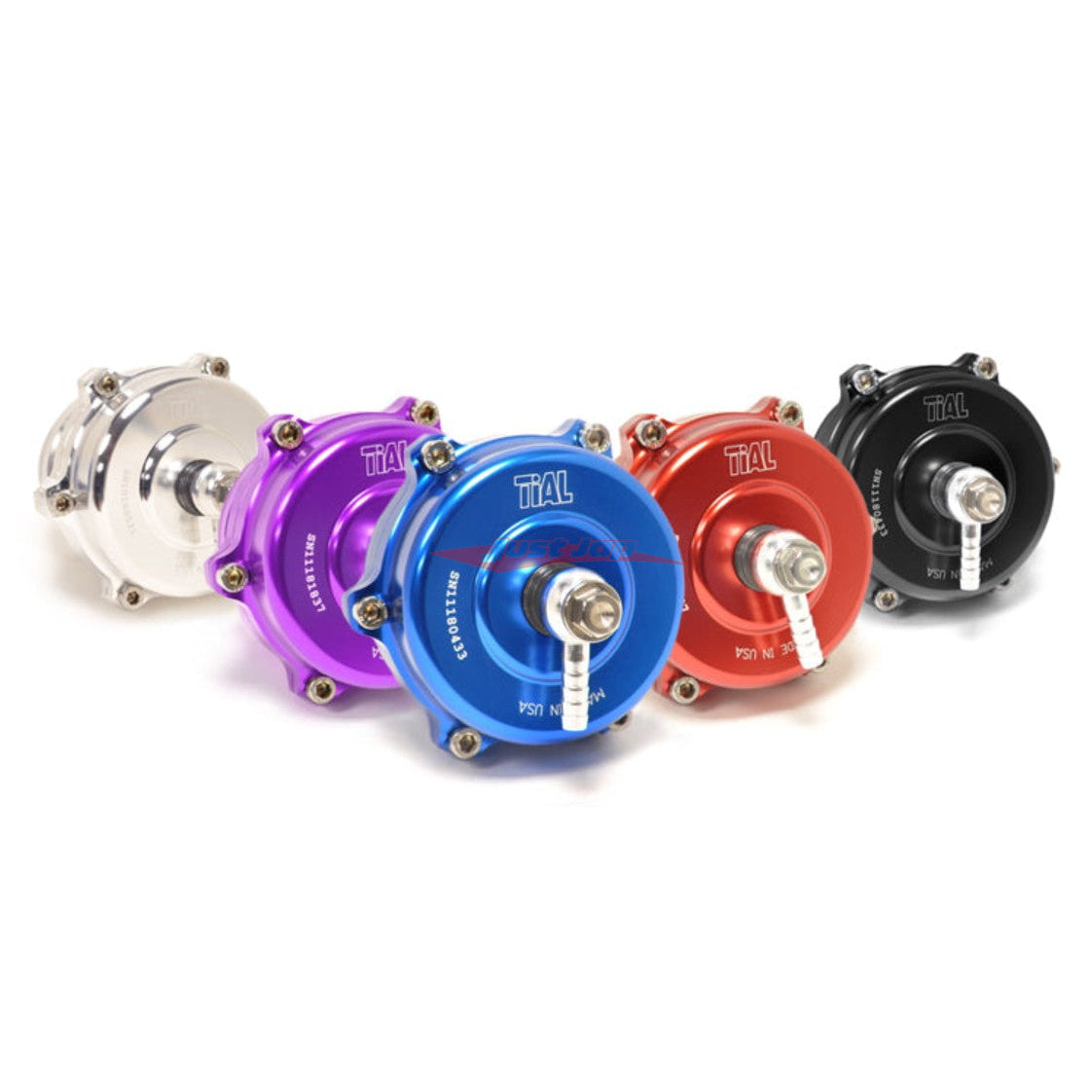

- Anodized aluminum color options (Silver, Red, Blue, Purple, Black)
Specifications
SKU 002571
Availability 7-10 Days
