Manley Extreme Duty Forged Piston with 9310 Alloy Pin & Rings (95.5mm Grade 1) Fits Nissan R35 GTR VR38DETT625EGR1-1
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
0In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 30 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription

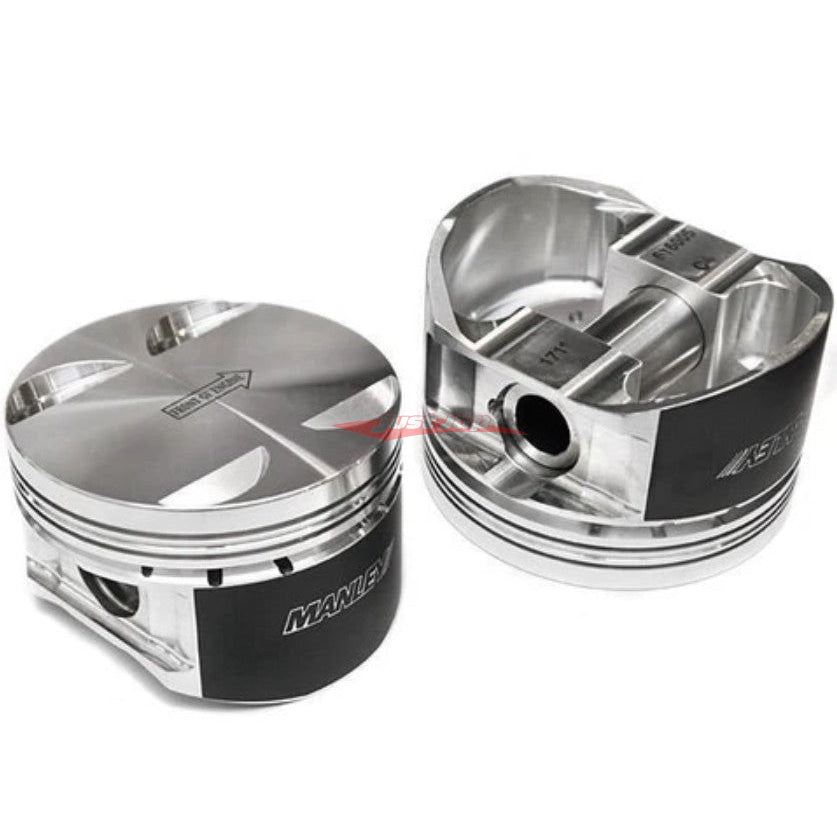

Manley pistons are machined of high-strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. Round wire locks, tool steel wrist pins, and rings are included with every set at no additional charge.
Features
- Pin: Extreme .210" Wall 23mm Diameter
- Bore Size: 95.5 Grade 1
- Rod Length: 5.600"
- Displacement: 3.8L
- Stroke: 88.4mm Standard Stroke
- Comp Distance: 1.350"
- Dome Volume: -1.5 cc
- Compression Ratio: 9.25
- Piston Type: Flat Top
- Weight: 449 Grams
- Ring Set: 46956‑1
Benefits
- "Contour forgings" provide the optimum balance between strength and weight with no grain-interrupting internal milling.
- The proprietary multi-step top ring groove machining process assures optimum control of the groove's size, geometry, flatness, and finish.
- All final turning is performed in one fixturing resulting in complete squareness of rings to the cylinder wall.
- Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity.
- Value - added features such as a pressure balance groove are included in all series.
- Precise pinhole machining results in an exact compression distance as well as precise lock ring groove spacing, size, and concentricity.

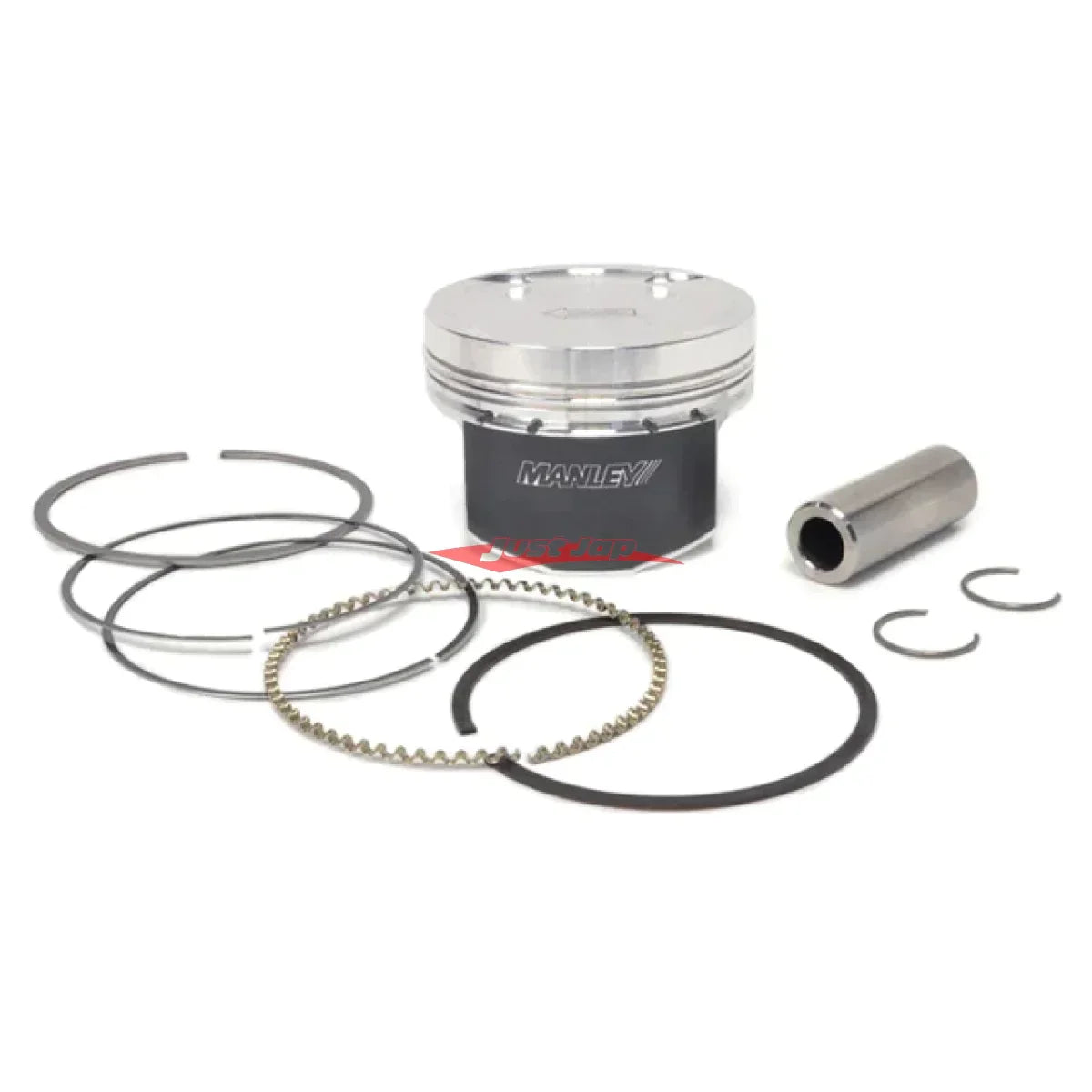

Includes
- 1x Piston
- 1x Piston Ring Set
- 1x Wrist Pin
- 1x Spiral Lock
Note: Sold Individually see below notes for grade numbers before placing an order.
Vehicle Compatibility:
- Nissan R35 GTR 12/2007- VR38DETT
These pistons feature skirt diameters that correspond to the OEM Grade 1, 2, or 3 bores. Check the bore grades on the back of your block and order the appropriate quantities of Grade 1, 2, or 3 pistons. (For example six Grade 2 in the example seen below)
Specifications
SKU 625EGR1-1
Availability 30 Days
