HPI Evolve spec-R 100mm Intercooler Fits Nissan Skyline R34 GTR V-SpecHP3ICE-10BNR34
Manufactured for hard sports driving from the street to curcuit, compatible with normal turbine / boost-up turbine. Please take this opportunity to experience the latest spec-R!
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
0In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 30-90 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription

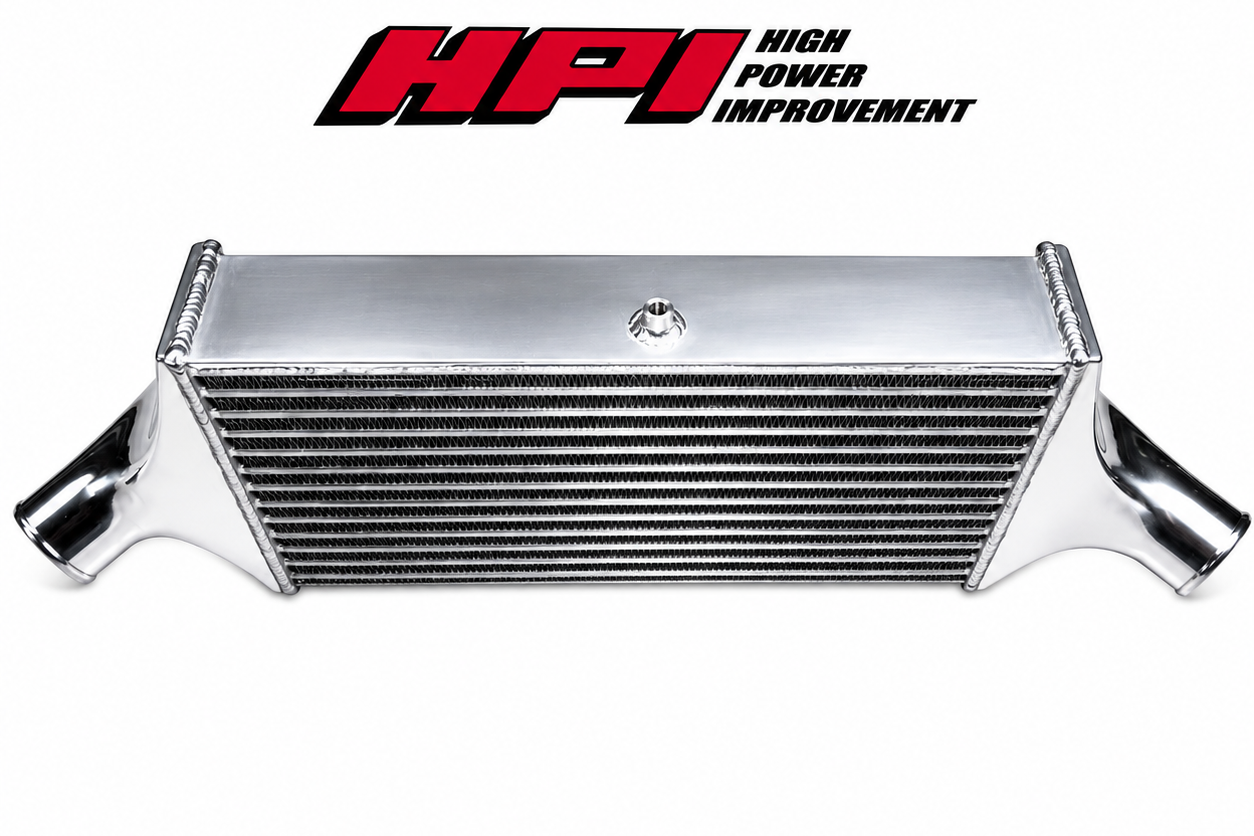

The HPI Spec-R Intercooler Kit is a high-performance upgrade engineered to deliver superior cooling efficiency, minimal pressure drop, and increased power output. Suitable for everything from street use to circuit driving, it supports standard vehicles, boost-up applications, and large-capacity turbocharger setups.
Kit Contents
- Intercooler assembly
- Installation hardware
Specifications
- Core size: 600 × 300 × 100 mm
- Inlet/outlet diameter: 80 mm
Key Features
- Internal offset fins increase air dwell time for improved cooling.
- External louvred fins improve heat dissipation.
- A high-rigidity top plate provides greater strength than conventional designs.
- Optimised side tanks, cooling fins, and tube profiles distribute compressed air evenly throughout the core.
- Stable intake-air temperatures under demanding driving conditions.
- Excellent balance between cooling efficiency and throttle response.
- Suitable for street driving, sports use, and continuous circuit laps.
- Made in Japan.
What is Spec-R?
Intercooler performance is influenced by several factors, including the dimensions of the core and end tanks, tube and fin design, intake airflow, and the amount of time compressed air remains inside the core.
Through extensive testing and refinement, HPI optimised the Spec-R’s side tanks, cooling fins, and tube profiles to distribute compressed air evenly across the core. Compared with HPI’s conventional Spec-S design, the Spec-R provides improved cooling efficiency and more stable intake-air temperatures, supporting greater and more consistent power output.

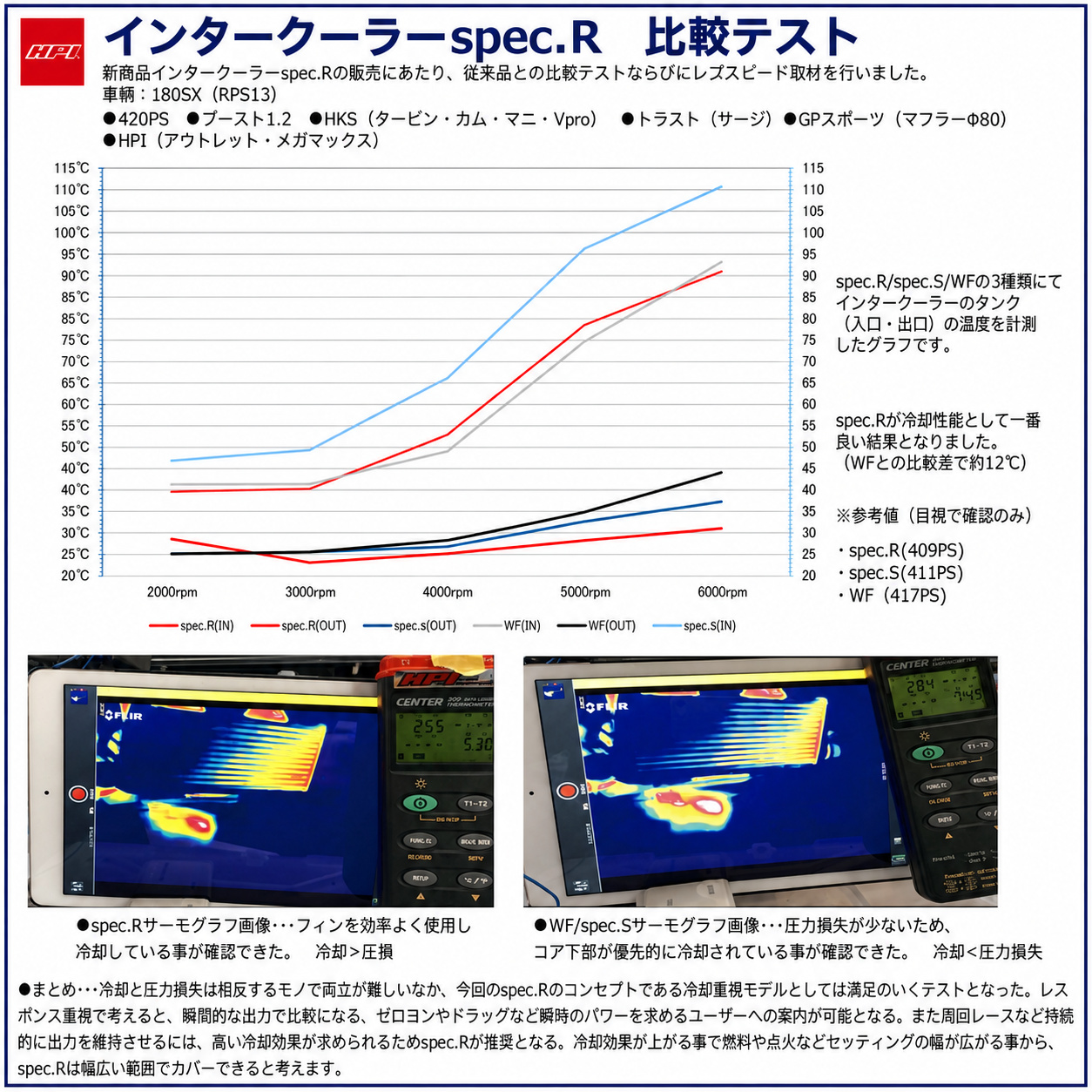

Cooling Efficiency and Pressure Drop
Effective cooling requires sufficient airflow across the external fins and adequate dwell time for the compressed air inside the tubes to release heat. However, increasing dwell time can also increase pressure drop and reduce throttle response.
The Spec-R is engineered to balance these competing requirements, delivering excellent cooling performance without compromising response.
HPI’s Development Concept
The Spec-R provides consistent cooling during peak-power runs and demanding driving conditions, including spirited street driving, continuous circuit laps, and situations where airflow through the intercooler is limited.
By controlling intake-air temperatures more effectively, the Spec-R allows the engine to deliver its full performance potential beyond standard factory capability. For optimum results, the ECU’s fuel, ignition, and electronic control settings should be recalibrated to take full advantage of the improved cooling performance.
Remarks
- The original protective grille can only be retained when using the 72 mm-thick model.

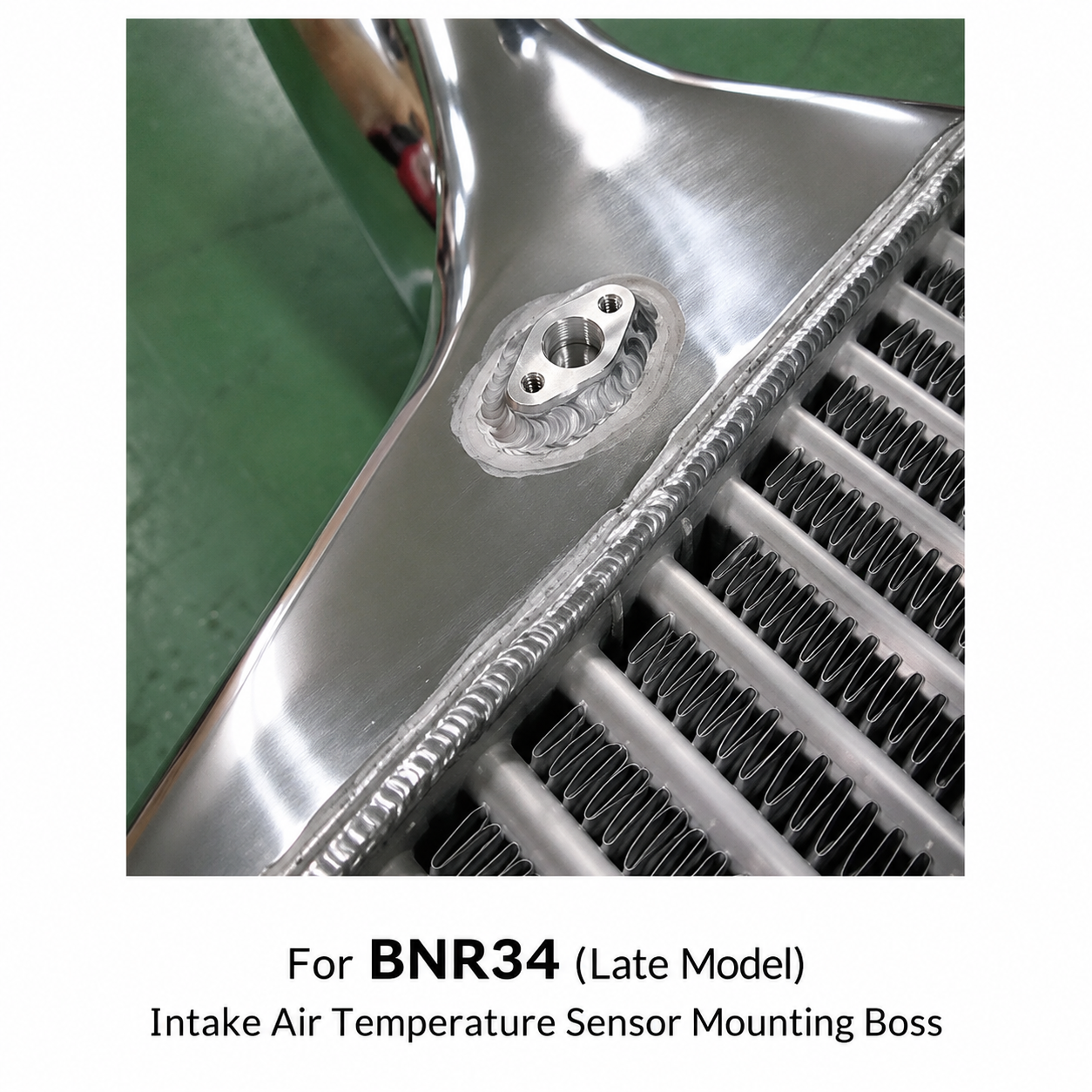

- Kits for vehicles equipped with the factory Multi-Function Display (MFD) include an intake-air-temperature sensor boss.
Vehicle Compatibility:
- Nissan BNR34 Skyline GT-R (With intake air temperature sensor boss)
Specifications
SKU HP3ICE-10BNR34
Availability 30-90 Days
