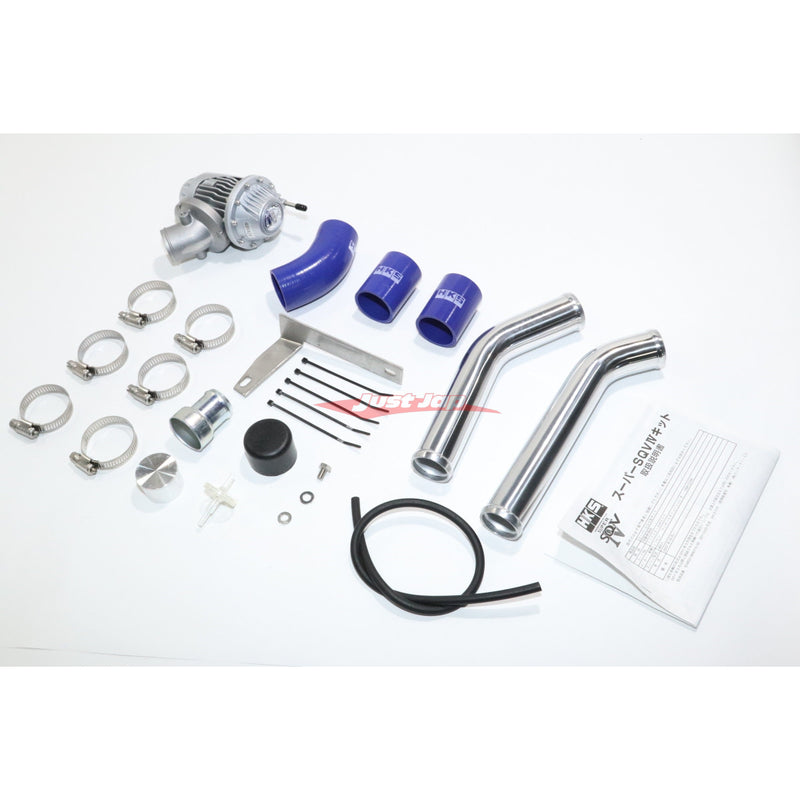

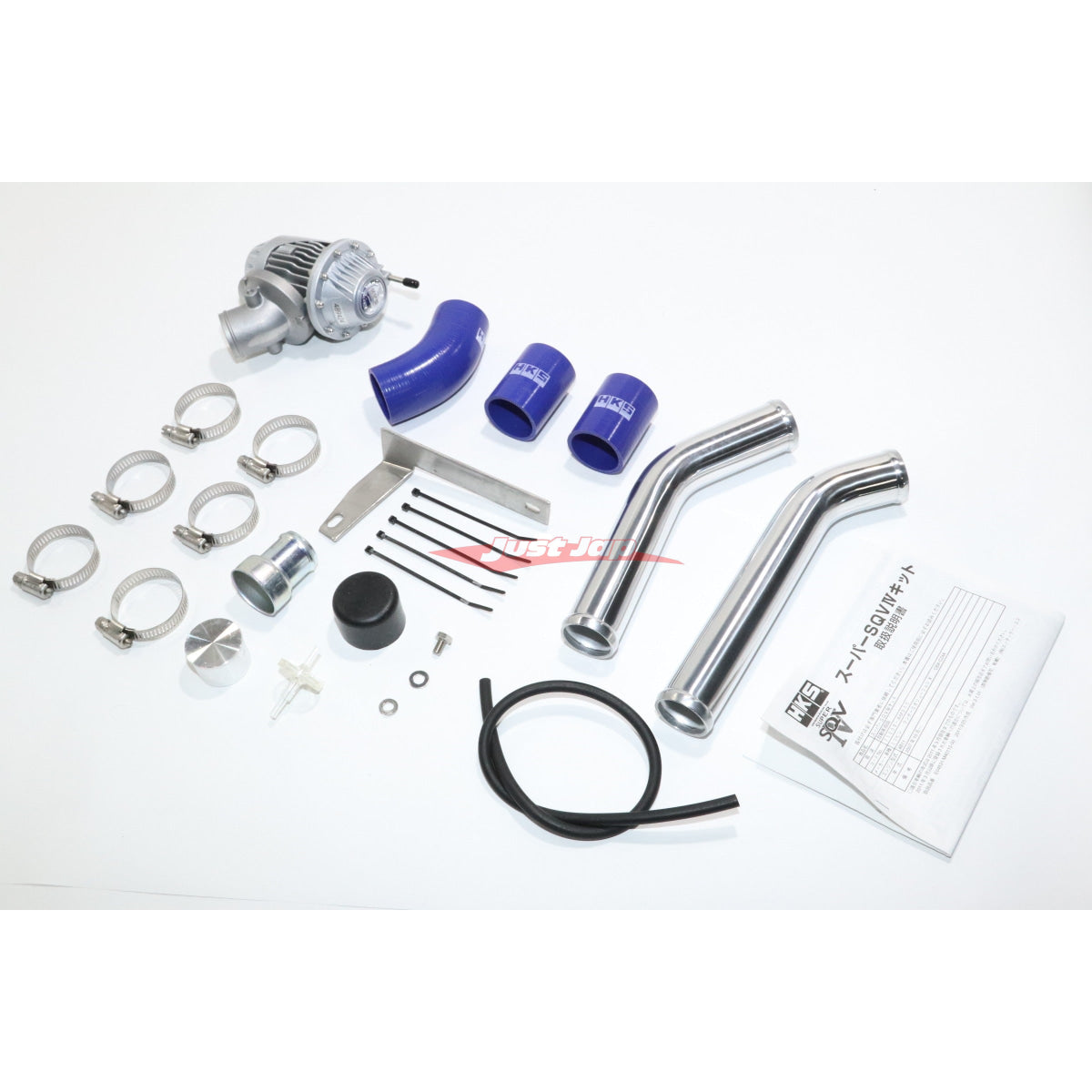

HKS Super SQV4 Blow Off Valve Kit Fits Mitsubishi Evolution 10 CZ4A 4B1171008-AM015
HKS Super SQV III Blow Off Valve Kit - Mitsubishi EVO 10 (CZ4A)
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
0In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 60-90 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription
HKS Super SQV (Sequential Blow Off Valve) uses a unique sequential valve structure and a differential pressure control system, which allows for a broad operating range from low boost to high boost. Its Pull-Type relief design ensures stable operation regardless of the amount of boost pressure. The Super SQV will support new generations of turbocharged vehicles.
Typical push-type blow off valves require spring load settings for each vehicle specification. If the spring load setting is too low, the valve may leak under high boost and the desired boost setting may not be reach. If the spring load setting is too strong, it may not open at low boost. The Super SQV will operate under any boost pressure setting without leaking
High Quality Aluminum Die-Cast Body
Silver-coated aluminum die-cast body. Combines the ultimate in looks and durability in the engine compartment.
High Stiffness Metal Die-Cast Valve
Secondary valve main portion is made of die cast metal. Reliable operation with beautiful looking.
Triple Fin design produces "Super Sound"
Triple Fins set at the center of the funnel produces a dynamic and aggressive sound. An optional special Round Fin can be purchased separately for sound tuning.
Pull-Type Relief Valve Operation
The Pull-Type valve operation offers more precise relief of excess boost and is compatible for a wider range of boost pressure compared to typical push-type blow off valves.
Primary Valve (Small)
Lift off the throttle, and the primary valve instantly opens, quickly discharging initial excess boost pressure.
Secondary Valve (Large)
This valve combined with the Primary Valve from the sequential dual valve structure. Optimal blow-off operation from how to high boost ranges without leaking.Â
Secondary Valve (Large)
At low boost ranges the Primary Valve opens, and at high boost ranges the Secondary Valve also opens, resulting in linear response and optimal blow-off operation at all boost levels.
Accelerator ON
Valves Closed
As pressure rises in chamber C, pressure is applied to both the Primary and Secondary valves. The higher the boost pressure, the more pressure is applied to the valves, preventing leaks.
Accelerator OFF
Primary Valve Opens
The throttle lift creates a pressure difference between chambers A & B, opening the primary valve and bypassing the secondary valve. this creates the initial discharge.
Accelerator OFF
Secondary Valve Opens
When the pressure difference in chambers A & B reaches a maximum, the Primary Valve pulls the Secondary Valve open, creating a secondary discharge.
Vehicle Compatibility:
- Mitsubishi Lancer Evolution X CZ4A 4B11 Mivec
Specifications
SKU 71008-AM015
Availability 60-90 Days
