HKS Stopper Type Metal Head Gasket Set Fits Nissan VQ35DE 2003-2005 (97mm Bore / 0.7mm)23001-AN002
HKS Stopper Type Metal Head Gasket Set Fits Nissan VQ35DE 2003-2005 (97mm Bore / 0.7mm)
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
0In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 10-15 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription

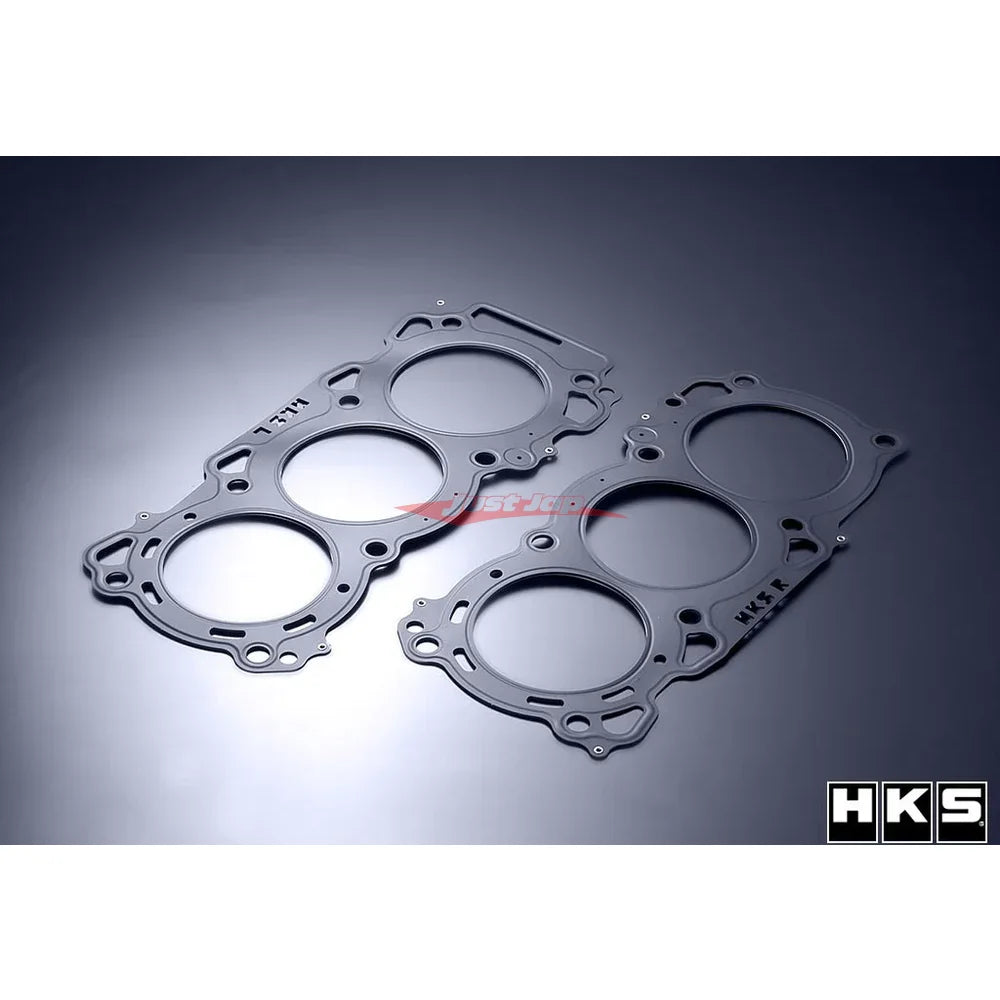

HKS METAL HEAD GASKET
The Performance requirement from the head gasket.
As the cylinder block and head are not rigid body, when the Head Bolts are tightened, the gap between the surfaces and the surface pressure applied is not even across the whole surface. Moreover, due to combustion pressure and vibration while driving, the conditions are continually changing, and the contact surface is being continually beaten. As a result, a good gasket must ensure that the contact surface pressure is spread as evenly as possible and also adapt quickly to the ever-changing gaps that can appear on the contact surface to maintain a good seal with sufficient pressure.
* Compression ratio is for reference when using a stock cylinder head with stock pistons.
A high pressure seal is formed around the combustion chamber through the use of stoppers which create a step within the gasket for optimum sealing. Making the stopper part of the plate also allows the fold to be smaller while maintaining structural integrity. One side of the plate is completely flat meaning that it can be layered with the stopper to allow stoppers to be used in even the tightest of locations around the combustion chamber forming a high quality seal. Compared with other gaskets of the same thickness, there are more layers in these gaskets giving flexibility which allows the gasket to maintain a good seal even when the engine tries to vibrate and move.
Opposed Bead Stopper Type
If you don't have to worry about the distortion, you can use this to improve the sealing. This type is much better than the bead type in terms of sealing. Opposed bead stopper type provide more balance in surface pressure.
Independent Water Hole Type
Water holes and Head Bolt holes have an "independent bead" that is the mainstream technology in motor racing. It reduces the possibility of overheating even combustion gas leakage due to high horsepower. Because of the new design of bead shape around the Head Bolt hole and water hole, a crack around Head Bolt hole will be prevented.
Specs
- Bore: 97mm
- Thickness (mm): 0.7mm
- Compression Ratio: 10.3
- Nissan VQ35DE (2003-2005)
Specifications
SKU 23001-AN002
Availability 10-15 Days
