HKS LA Clutch Kit Fits Toyota 86/Subaru BRZ (13-20)26010-AT001
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
0In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 60-90 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription

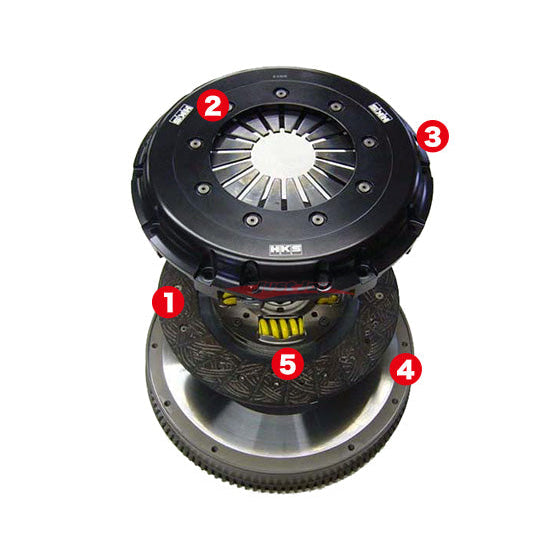

LA Clutch Series adds Toyota 86 (ZN6) and Subaru BRZ (ZC6) to its line up
To compliment use with the GT Supercharger kit, torque capacity is rated at 400Nm (41Kgm / 295lbft) which approximates to 295kw (400ps). This superior capacity for a single plate clutch allows full use of 86/BRZ with high power levels.
As well as torque capacity, light weight and ease of operation where also balanced making fitment to NA vehicles feel natural with increased response which facilitates quick shifting.
1 φ230MG COMPOSITE DISC
- "MG Composite Disc" is combines metallic with fibrous materials to give the ideal combination of friction, heat resistance strength and durability.
- Mid engagement during normal driving but with no slip and quick action during circuit use.
- Low inertia disc reduces synchro shock and allows for quick.
2 PEDAL WEIGHT AND PRESSURE BALANCE
Despite the increased pressure to withstand high torque levels, the clutch pedal is heavy maintaining a positive feel.
3 STRAP DRIVE MECANISM
Strap Drive Mechanism in the clutch cover allows for clean and accurate disengagement.
4 SHARP RESPONSE
Weight is reduce to suit each application. This allows increase response and acceleration and smooth action which can be lost when too light.
5 NOISE REDUCTION & TRANSMISSION PROTECTION
Disc damper reduces gear noise and protects the transmission from impact torque.
■Warnings
- "Allowable Range" is the range of engine torque which is allowable unless the clutch is overheated by intentional clutch semi-engagement.
- "Conditional Allowable Range" is the range slippage may occur due to rough handling, kickback from tires, components’ distortion.
- "Range beyond Allowable Range" is the range that slippage occurs when a clutch is being engaged under high RPM.
- "Mechanical Limit" is the point that slippage occurs when accelerating during normal driving.
- During idling or accelerating around 2000rpm, some chattering may be heard but there is no mechanical fault.
■COMPARISON LA CLUTCH vs. STOCK CLUTCH
| ZN6/ZC6 | |||
| Stock | LA Clutch | % Change | |
| Pedal force (N) ※1 | 103 | 157 | 152% |
| Flywheel weight (kg) | 9.28 | 5.82 | 63% |
| Clutch Disc Weight (kg) | 1.52 | 1.48 | 97% |
| Weight | 15.72 | 12.04 | 77% |
※1 The force on pedal is a measured value of actual vehicle. There is a margin of error for each vehicle, it's an approximation.
●SUPPORT PARTS
| Product | Vehicle | Model | E/G | Model Year | Code No. | Remarks |
| Clutch Cover | 86/BRZ | ZN6/ZC6 | F20A | 12/04- | 26999-AT012 | Due for release soon |
| Clutch Disc | 26999-AT013 | Due for release soon | ||||
| Bolt Set(Cover) | 26999-AK004 |
| Vehicle | Model | Engine | Model Year | Mission Type | Form | Flywheel Weight | Clutch Type | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|
| 86 | ZN6 | FA20 | 12/04 -21/10 | Stock 6 speed | PUSH | 5.8kg | SINGLE | 26010-AT001 |  |
Fit to Applied E(16/08-). |
Specifications
SKU 26010-AT001
Availability 60-90 Days
