Blitz SBC Type S Plus Boost Controller15044

The Blitz SBC Type S Plus Boost Controller is a cost effective boost controller with great boost control and highly functional display unit.

USD $282.00

Buy now and pay later with...

Zip now, pay later

or 4 interest-free payments of $70.50 with More info

What is Afterpay?

Afterpay allows you to purchase from online store and pay later in 4 easy interest-free instalments.

How does Afterpay work?

To pay with Afterpay:

  • Add your items to the cart

  • Select Afterpay as the payment option at the checkout

  • Signup or use your existing Afterpay account

  • Once approved, JustJap will dispatch your order

Is there any interest on the amount paid?

No, there is no interest payable by you

Is there an order limit?

Yes, the maximum purchase amount using Afterpay on JustJap is $1000.

What are other terms and conditions I need to be aware of?

Full terms & conditions are available at

How often is repayment?

Afterpay offers your order to be paid in 4 instalments with repayment automatically occuring every 2 weeks.

How do I sign up for Afterpay?

Select Afterpay as a payment method (or visit the website).

You can register as you complete your purchase.

How do returns work with Afterpay?

Merchants will be able to initiate all eligible refunds on your behalf. Once completed, your refund will be applied to your order.

Does Afterpay charge interest?

There is no interest payable by you if you place an order using Afterpay.

Can I place an Afterpay order with you over the phone?

Afterpay is available as an online payment method and requires login credentials for authorisation. Our team members or merchants are unable to place an order on your behalf.

Where can I find out more about Afterpay?

If you would like to know more about Afterpay, visit the Afterpay website for a comprehensive list of FAQs & terms. Afterpay’s Privacy Policy which can be found at privacy-policy

Thanks for registering your interest. We'll let you know when this item is back in stock.

Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.

7In Stock - Kirrawee, NSW

Ships in 1-3 business days

Available for back order

Lead time 60-90 Days

Click & Collect available from Kirrawee, NSW



For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.

Please note that in some circumstances we are not able to use your chosen shipping method.

For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.

Link has been copied to clipboard!

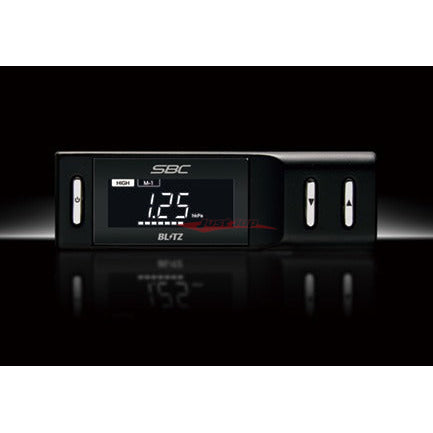

Compact Body
As with conventional products, the compact body design has realized the smallest controller size in the history of the "SBC" series.

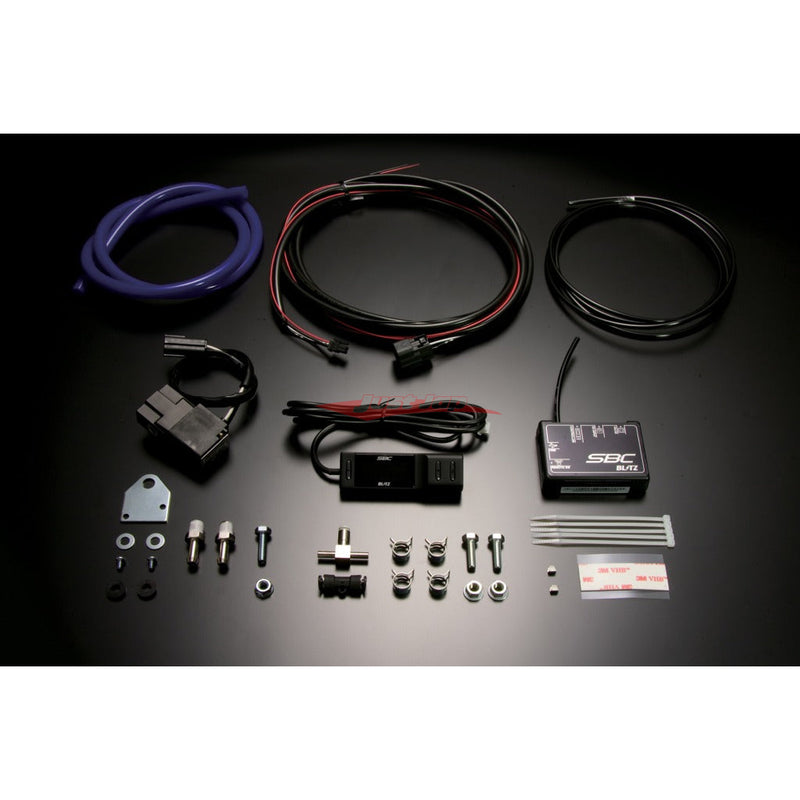

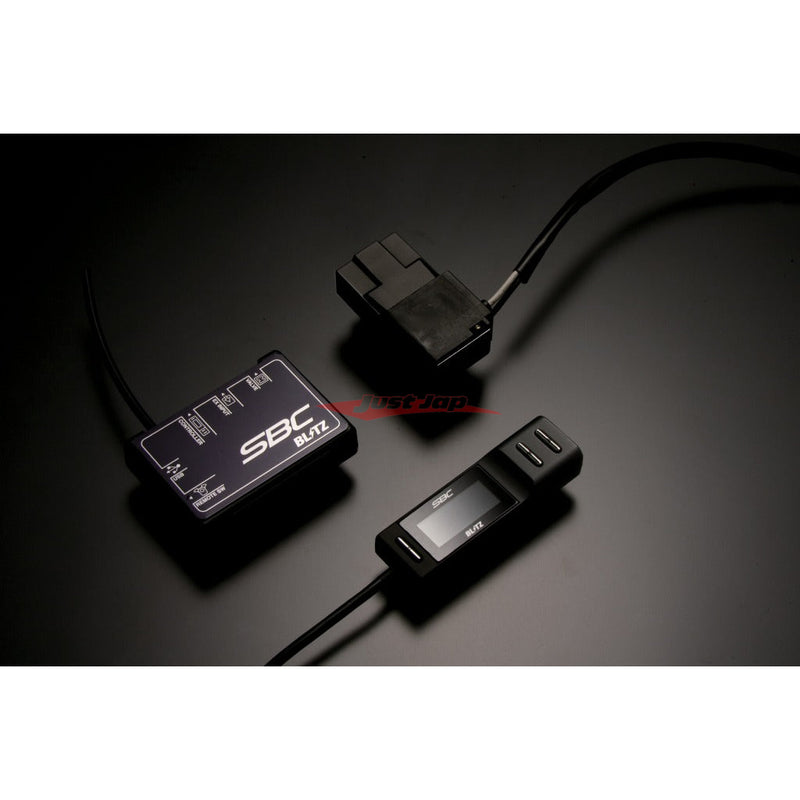

A three-piece structure consisting of a controller, CPU unit, and solenoid valve supports a variety of mounting positions.
The controller uses a high-quality matte black body color and a newly developed VA liquid crystal display.

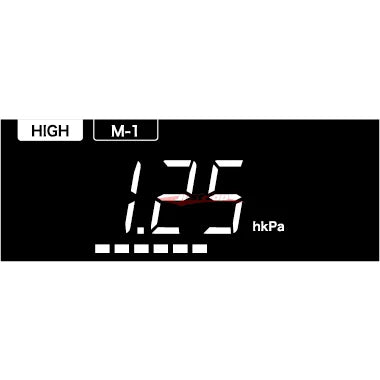

Display with a combination of 7 segments and bar graphs and simple operation with 3 buttons are possible.
Boost Controller Function
Employs a boost pressure control algorithm that has a proven track record in conventional products.

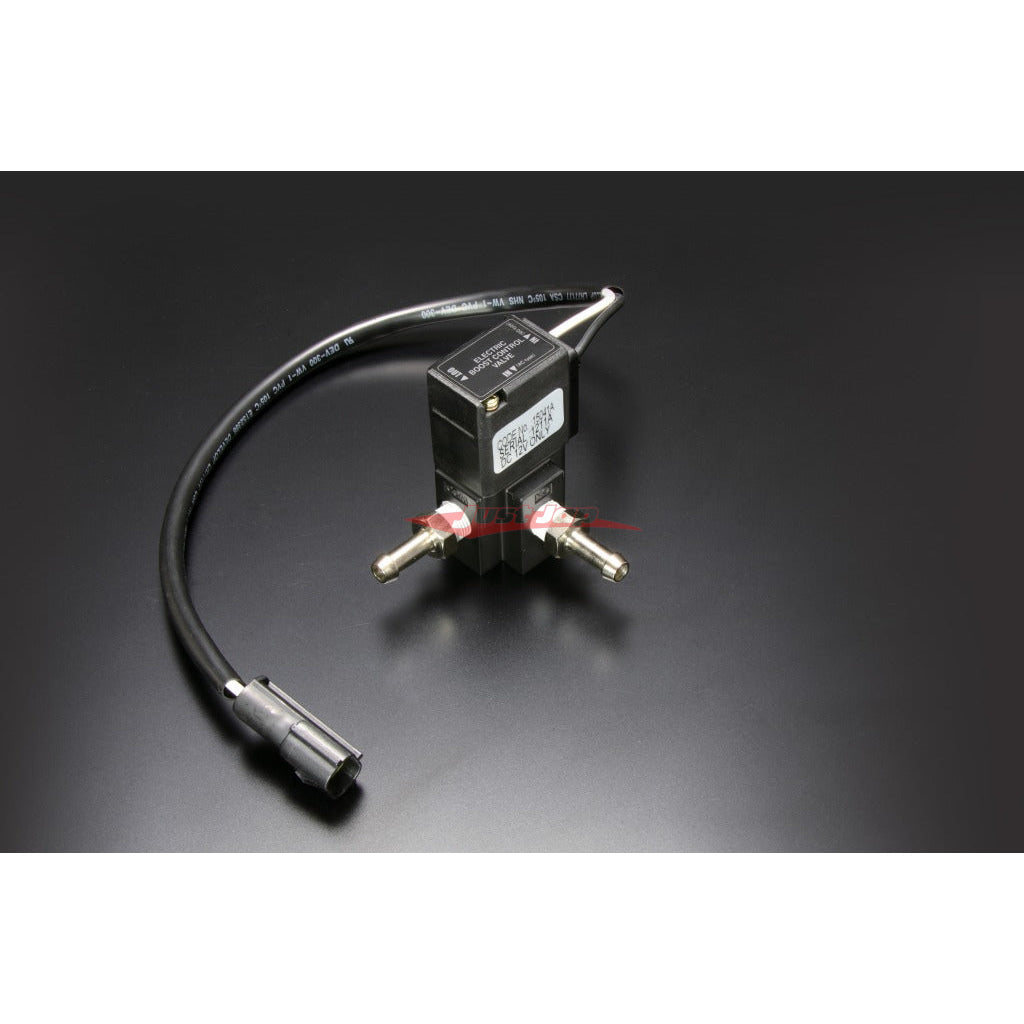

Combined with a single solenoid valve that supports high flow rates, boost control with high stability is achieved.
Quick rise to the target boost pressure, reduction of overshoot, and suppression of boost drop (sag).
On the display side, the display supports up to 3.00kPa (43.5PSI), so it can be used for a wide range of boost from normal cars to high-boost cars.
The DUTY value (the value that determines the maximum boost pressure) can be set for each of the four channels, “M-1” and “M-2” for “Low” and “High” respectively.
Since the GAIN value (the value that determines the rise of boost) can be set for each channel, boost control can be performed according to your preference.
Furthermore, by setting the P-GAIN value, it is possible to automatically read the point where the boost pressure has passed the peak and control the boost pressure to stabilize.
Of course, in addition to the familiar real-time boost meter display, a peak hold function, warning function, boost limiter function, and
scramble boost function are also standard.
Product Features
  • Newly developed VA LCD panel has been utilized to create better visibility. Compared with the previous model, the new display allows higher contrast and greater viewing angle.
  • The product includes a 12mm thick controller (at its thinnest location), boost controller unit, and a high precision solenoid valve. Flexible installation is made possible due to the three-piece composition.
  • Within the LOW and HIGH manual setting, a separate M-1, M-2 regulatory channels are equipped.
  • DUTY, GAIN, P-GAIN can be set for each of the channels.
  • The optimum setting for a diverse range of driving conditions can be memorized.
  • Stable boost is maintained due to the newly updated regulatory algorithm.
  • Maximum boost pressure of up to 3.00×100kPa(43.5PSI)can be safely managed.
  • The product includes functions such as real time boost, peak hold, warning, boost limiter, and scramble boost.
  • The scramble boost function can be accessed by installing the separately sold Remote Switch.
  • The Remote Switch can also be used to change the channel as well.


SKU 15044

Availability 60-90 Days
