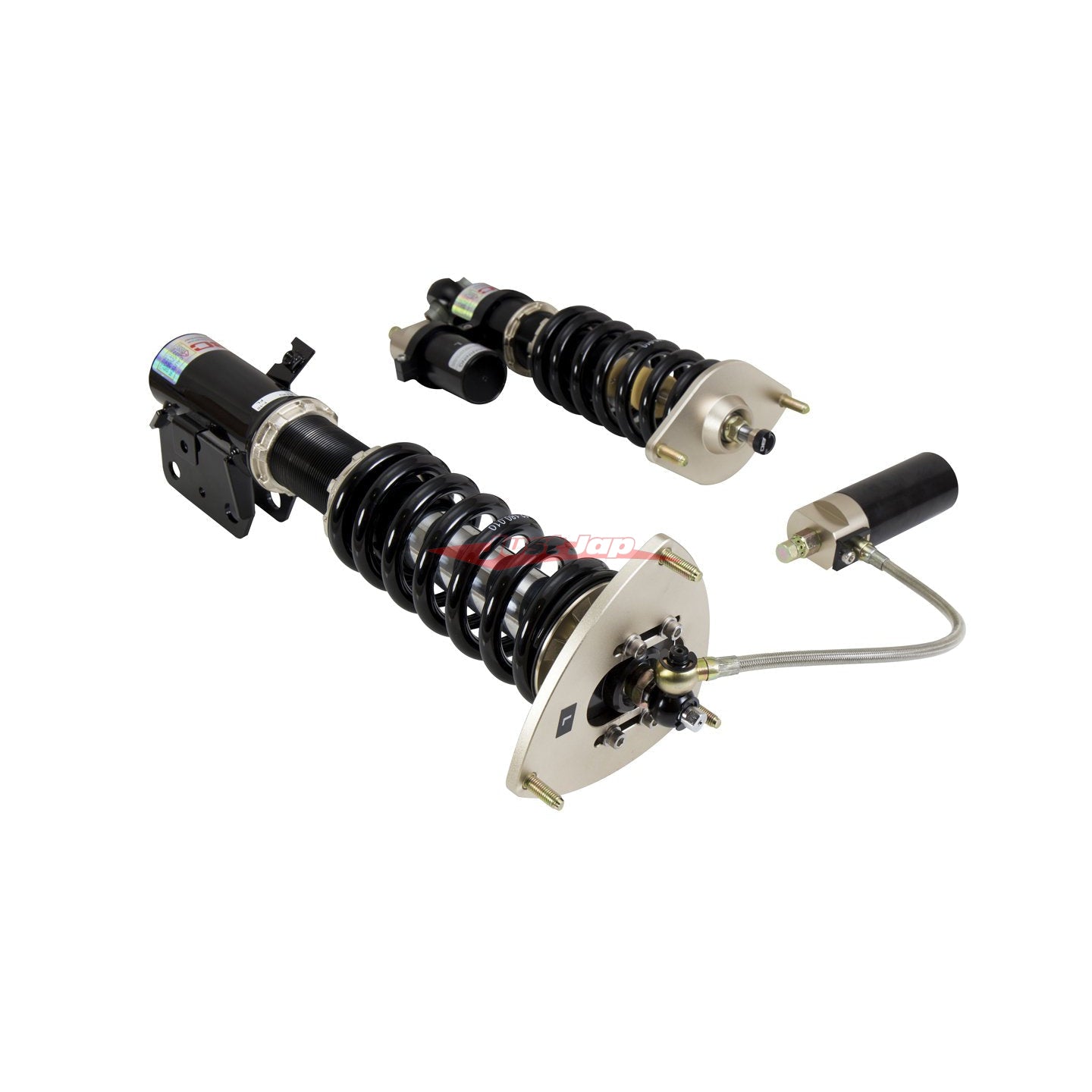

BC Racing Coilover Kit HM fits Subaru IMPREZA / WRX GC6/GC8 93 - 00F-01-HM

The HM Design include all of the great features from the RM Series with the addition of 2-way damping adjustment. Each HM coilover system comes with large 42mm inverted mono-tube dampers with independently adjustable compression and rebound.

The HM Design BC Racing have moved the damper fluid away from the vehicles brakes to avoid overheating the fluid causing damper fatigue under extreme conditions. The inverted damper also allows for decreased unsprung weight by moving the majority of the coilover mass up to the chassis where weight can more easily be shaved.
With the combination of an inverted mono-tube and external reservoirs the HM series is suited for the most demanding users on the track.

Standard Features:

Designed for 100% Track Use
- Front Top Mounted External Reservoir Braided hose design on inverted shocks
- Camber plates or pillowball top mounts all around (A few car models do not use top mounts)
- Rear External Reservoir
- Twin Piston Design
- Separate Compression & Rebound Adjustment
- 30 Level Damping Force Adjustment
- Full-Length Height Adjustment
- Anodized Alloy Casing
- CNC Machined
- T6061 Alloy Locking Ring
- Inverted shocks on McPherson Struts (depending on car models) Rear Monotube Design For Maximum Performance
- Fully Rebuildable
- 12 Month Warranty

Vehicle Compatibility:

Subaru IMPREZA / WRX GC6/GC8 93 - 00

Disclaimer: Please note that operational noises such as knocks and squeaks from track-oriented products such as pillow ball top mounts and track-oriented coilovers such as the DS, RM, ER, HM or ZR models is a normal characteristic and NOT covered by warranty.
