*images shown for illustration purposes only and may differ from the actual product

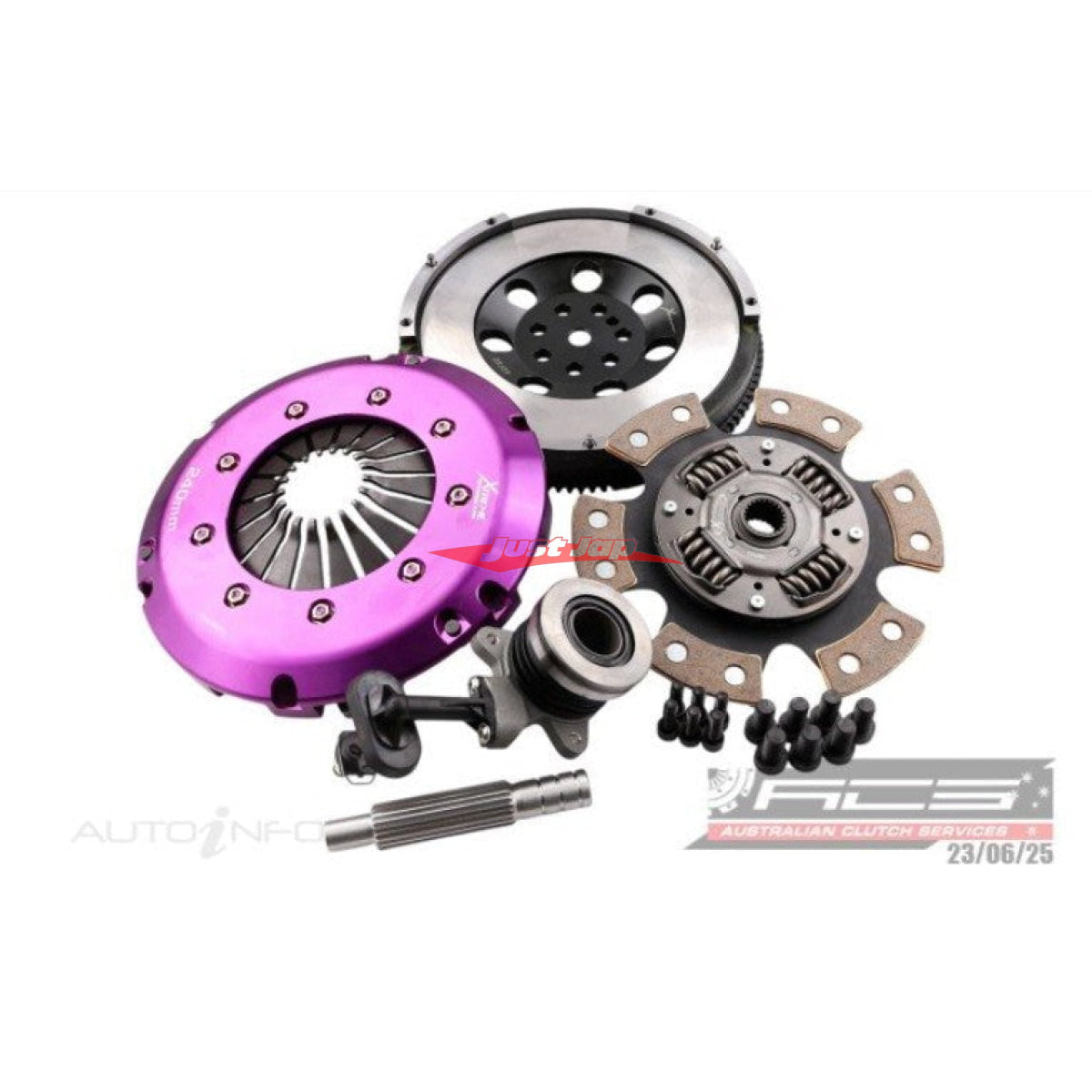

Xtreme Heavy Duty Button Clutch & Cromomoly Flywheel Kit Inc Clutch Slave Cyl. Fits Hyundai i20N G4FVKHD24626-1B
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
0In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 3-5 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription
Xtreme Street brings racetrack-developed technology to your road car. Xtreme have performance clutch systems for street vehicles, ranging from heavy-duty organic systems, with OEM (or sometimes better than!) levels of drivability, right through to track-driven road registered race cars.
The Stage 2 clutch uses an upgraded pressure plate combined with a ceramic friction disc in sprung configurations. The stage two clutch range is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive than stage 1, so it is not recommended for daily driven vehicles.
These kits feature a high-quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle. They use a ceramic “paddle” friction disc which can result in more noise and harsher engagement.
Specifications:
- Flywheel Step: -9.5
- Clutch Disc Diameter (mm): 240
- Clutch Disc Spline Count: 20
- Clutch Disc Spline Diameter (mm): 22.2
- Disk Type Sprung
- Friction Material Ceramic
- Stage 2
- Recommended Use Street
- Clamping Force Increase 30%
- Torque (Nm) Inc FOS 660
- Torque (ftlbs): 490
- Fly Wheel Included Yes Single Mass
- Fly Wheel Bolts Included Yes
- Pressure Plate Bolts Included Yes
- Concentric Slave Included Yes
- Spline Grease Yes
- Weight (kg): 14.0
- Note: Conversion to SMF (Single Mass Flywheel)
Vehicle Compatibility:
- Hyundai i20N BC3 Hatch 1.6L DOHC VVT G4FV (2021-)
Specifications
SKU KHD24626-1B
Availability 3-5 Days
