Nismo Super Coppermix Single Plate Clutch Kit (420ps/309kW) Fits Nissan S13/S14 Silvia & 180SX/200SX (SR20DET)3000S-RS520-H1
Nismo Super Coppermix Single Plate Clutch Kit - Rated to 309Kw/420Ps
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
-1In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 60-90 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription

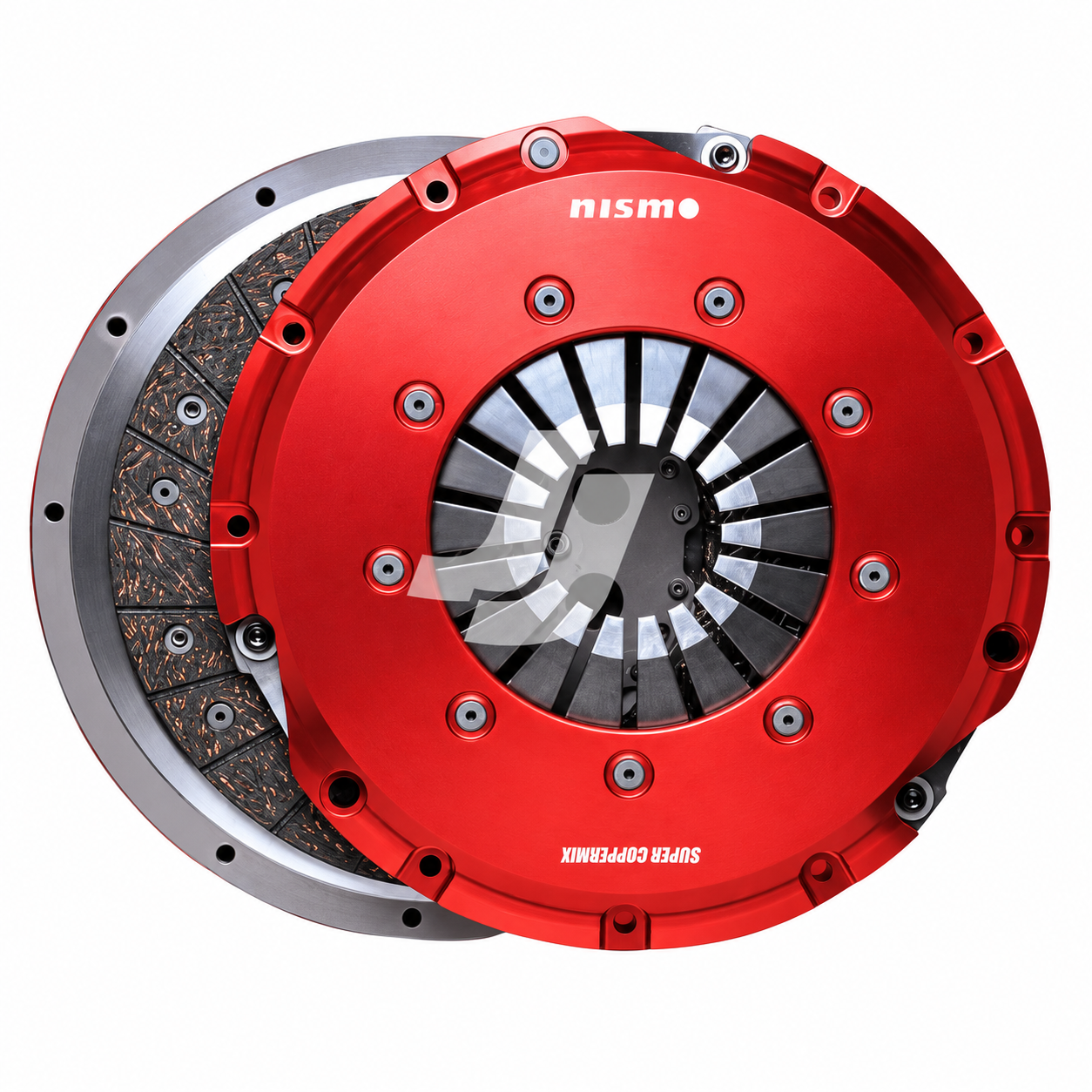

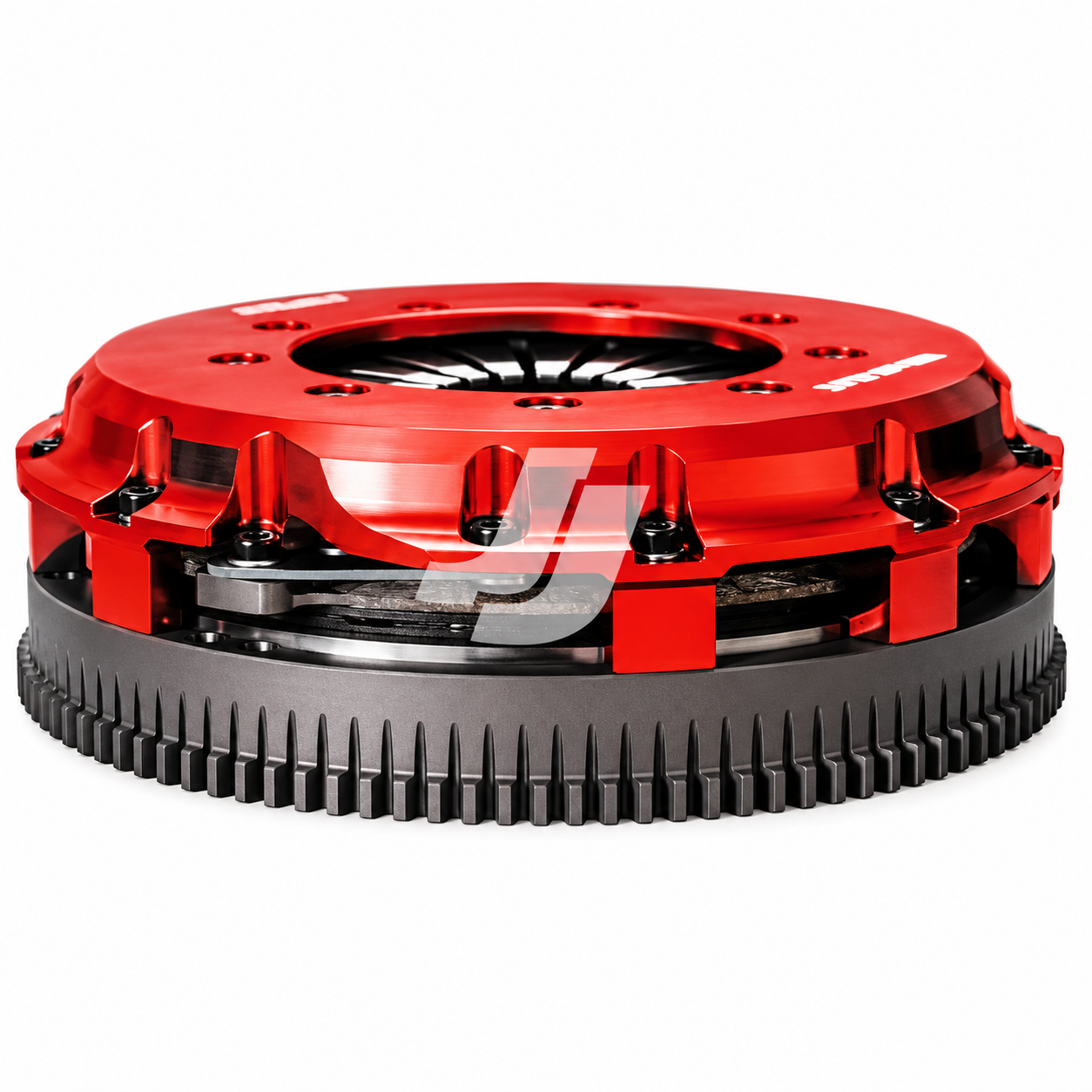

NISMO Super CopperMix is the highest-performance model in its single-clutch system line. It uses a copper mixture for the clutch disk. CopperMix can handle high horsepower outputs & transmit all the power to the wheels.
Specifications:
- Full clutch kit capable of handling 380 to 420 horsepower for a range of vehicles
- Maintains great drivability and easy bolt-on replacement for the standard clutch
- Suitable for street use and track use and proven in almost every area of motorsport
- The 240mm size COPPERMIX disc, together with an aluminum cover, maintains stable transmission and cooling
- The included lightweight flywheel was manufactured from chrome-molybdenum to obtain the ideal weight to ensure torque
- The center plate is equipped with a special strap function that supports smooth gear disengagement by preventing blockage.
Handles an estimated maximum allowable power of 420ps (309kW)

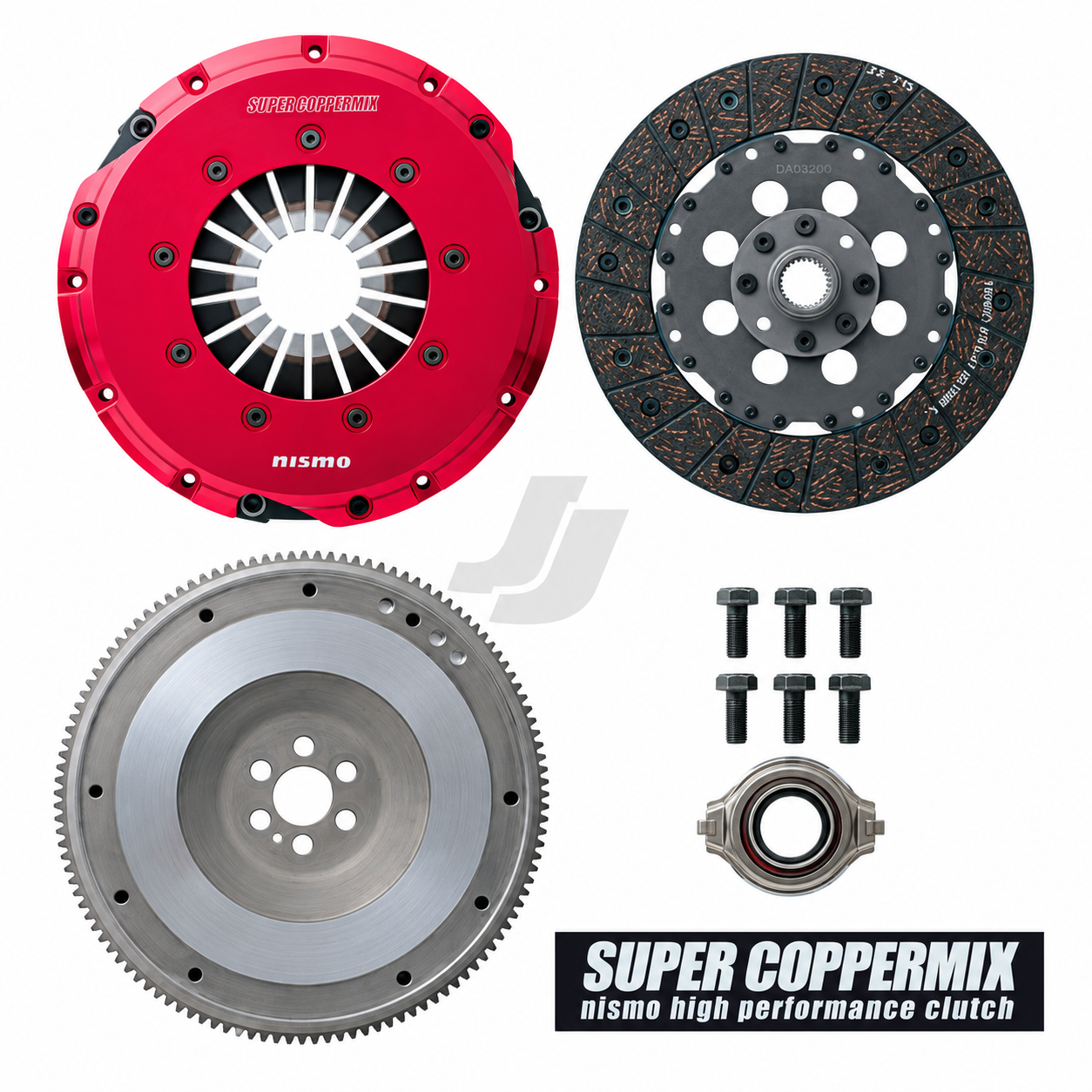

Kit contents
-
Coppermix clutch disc
-
Aluminum clutch cover
-
Lightweight flywheel
-
Flywheel bolts
-
Release bearing (Nissan genuine parts)
- Nismo Sticker
Specifications
Allowable torque N･m (kgf･m)
- Kinetic friction 530 Nm (54 kgf･m）
- Static friction 794 Nm (81 kgf･m)
Allowable output kW (ps)
- 309 kW (420ps)
Clutch Cover Pressure Nm (kgf)
- 9807 (1000)
Handles an estimated maximum allowable power of 420ps (309kW)
Vehicle Compatibility:
- Nissan S13 Silvia (SR20DE/T)
- Nissan S13 180SX (SR20DE/T)
- Nissan S14 Silvia & 200SX (SR20DET)
Specifications
SKU 3000S-RS520-H1
Availability 60-90 Days
