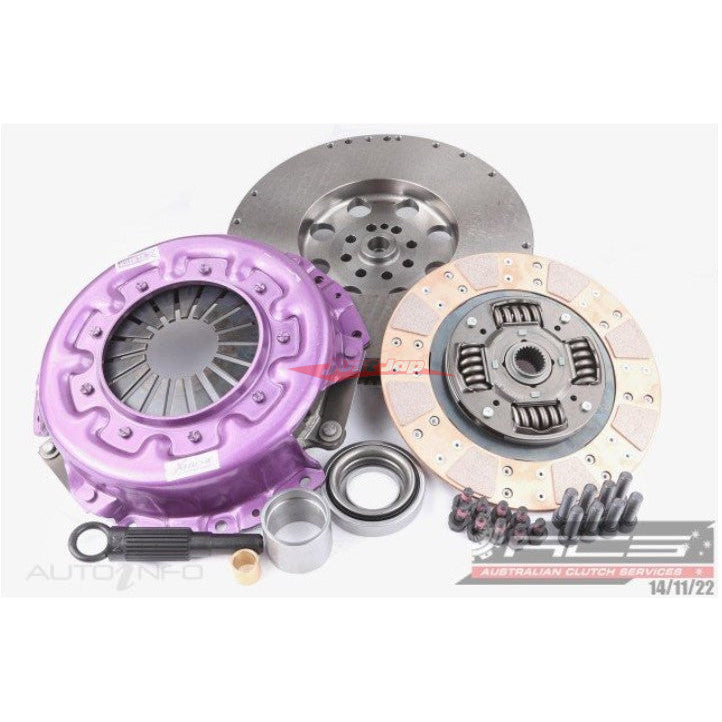

Xtreme Heavy Duty Cushion Button Clutch & Flywheel Kit fits Nissan S15 Silvia / 200SX (6 Speed)KNI24540-1C
Xtreme Heavy Duty Cushion Button Clutch & Solid Flywheel Conversion Kit - Nissan S15 Silvia/200SX (6 Speed)
Description
Xtreme Street brings racetrack-developed technology to your road car. Xtreme have performance clutch systems for street vehicles, ranging from heavy-duty organic systems, with OEM (or sometimes better than!) levels of drivability, right through to track-driven road registered race cars.
The Stage 2 clutch uses an upgraded pressure plate combined with a ceramic friction disc in sprung configurations. The stage two clutch range is designed for road and track-going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive than stage 1, so it is not recommended for daily-driven vehicles.
These kits feature a high-quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle. They use a ceramic “paddle” friction disc which can result in more noise and harsher engagement
Flywheel Step (mm) | Flat |
Clutch Disc Diameter (mm) | 240 |
Clutch Disc Spline Count | 24 |
Clutch Disc Spline Diameter (mm) | 25.4 |
Disc Type | Sprung |
Friction Material | Ceramic |
Stage | 2 |
Recommended Use | Performance Street |
Clamping Force % Increase | 35% |
Torque (Nm) Inc FOS | 570 |
Torque (ftlbs) Inc FOS | 420 |
Spigot Bush/Bearing Included | Yes |
Aligning Tool Included | Yes |
Flywheel Included | Single Mass |
Flywheel Bolts Included | Yes |
Pressure Plate Bolts Included | Yes |
Spline Grease Included | Yes |
Note | Conversion to Single Mass Flywheel |
Note 2 | Includes Thrust Bearing Fitting Tool |
Transport Weight (kg) | 17.8 |
Vehicle Compatibility:
- Nissan S15 Silvia / 200SX (6 Speed)
Specifications
SKU KNI24540-1C
Availability 7-10 Days
