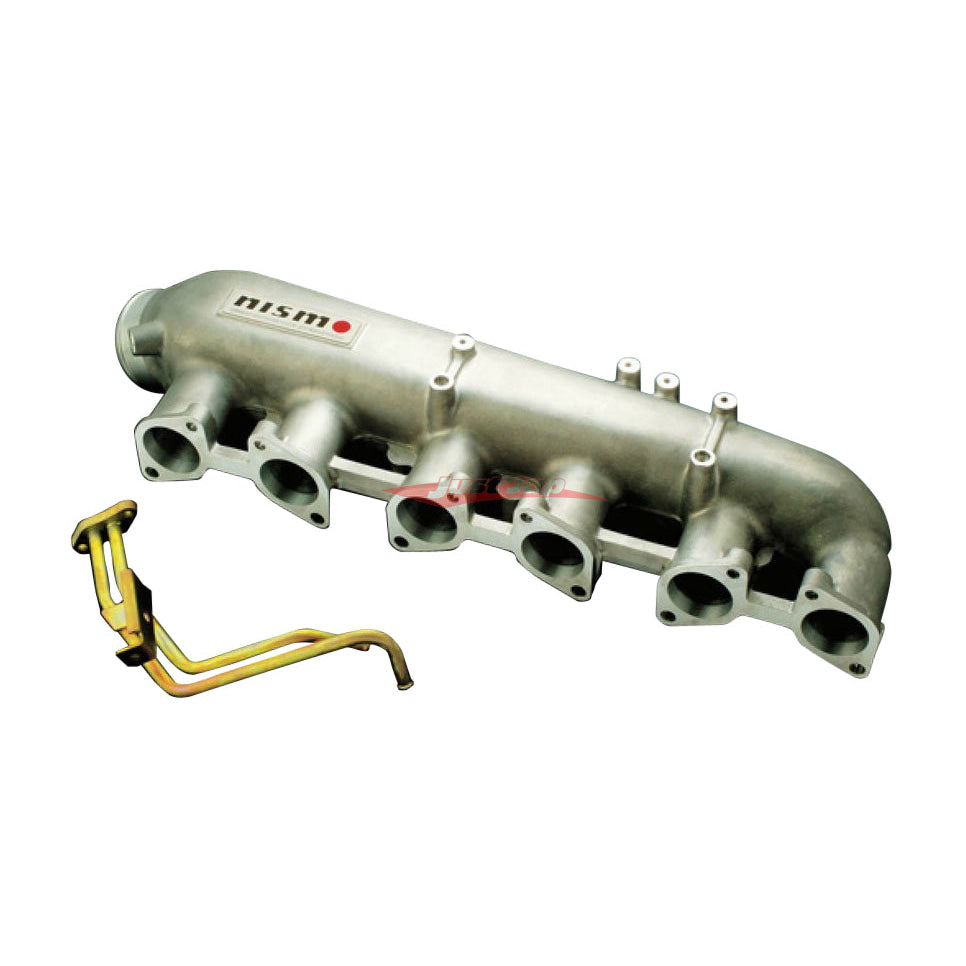

Nismo Intake Manifold Collector Plenum Fits Nissan R32/R33/R34 Skyline GTR & C34 Stagea 260RS RB26DETT14110-RSR45
The Nismo intake collector is designed with form & function in mind, and is fully optimized for air flow in tuning the GT-R engine (400ps to 600ps)
Kit Includes:
- Gall Assy-Vac
- Cont Hose-Vac
- Clutch Booster
- Brkt-Oil Cooler
- Mtg Gskt-Vac
- Pipe Gskt-Throttle Chamber
- Gskt-Temperature Sensor
- Gskt-Oil Pressure Sensor
- Gskt-Aac Valve Pin-Dowe
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
0In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 60-90 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription
This intake collector is a standard item in the NISMO Z-tune GTR R34 Ver. 2002.
It is a complete bolt-on installation, and no modifications are necessary on the idling control, fuel piping, clutch piping & vacuum piping. (The only minor adjustments needed are on the throttle linkage & throttle sensor). Improved medium speed torque is achieved by improving airflow onto each cylinder, and this is done by refining the diameter & length of the inlet pipe & cross-section of the intake collector.
Normal Collector
Based on the factory item with respect to the form factor, the air is not evenly distributed to all 6 cylinders. As a result, the NISMO air collector tried to distribute airflow evenly & equally by redefining the intake form factor.
There is a difference in turbine inlet exhaust gas temperature between the front & the rear. The overall temperature difference has been reduced drastically due to an improved & efficient intake quantity between the cylinders on both sides. (The exhaust gas temperatures at the front-rear turbine were reduced by an average of 18% from 2400 RPM to 7000 RPM)
The fuel supply density is high in order to protect the turbocharger from high exhaust gas temperatures. With the NISMO air collector, temperatures are reduced and this resulted in improved fuel economy & improved output. Both cylinders & ignition timing could be optimized because exhaust gas temperature differences become small. (At 4800 RPM to 7600 RPM, output improved by an average of 1.8%, and fuel consumption improved by an average of 0.4%)

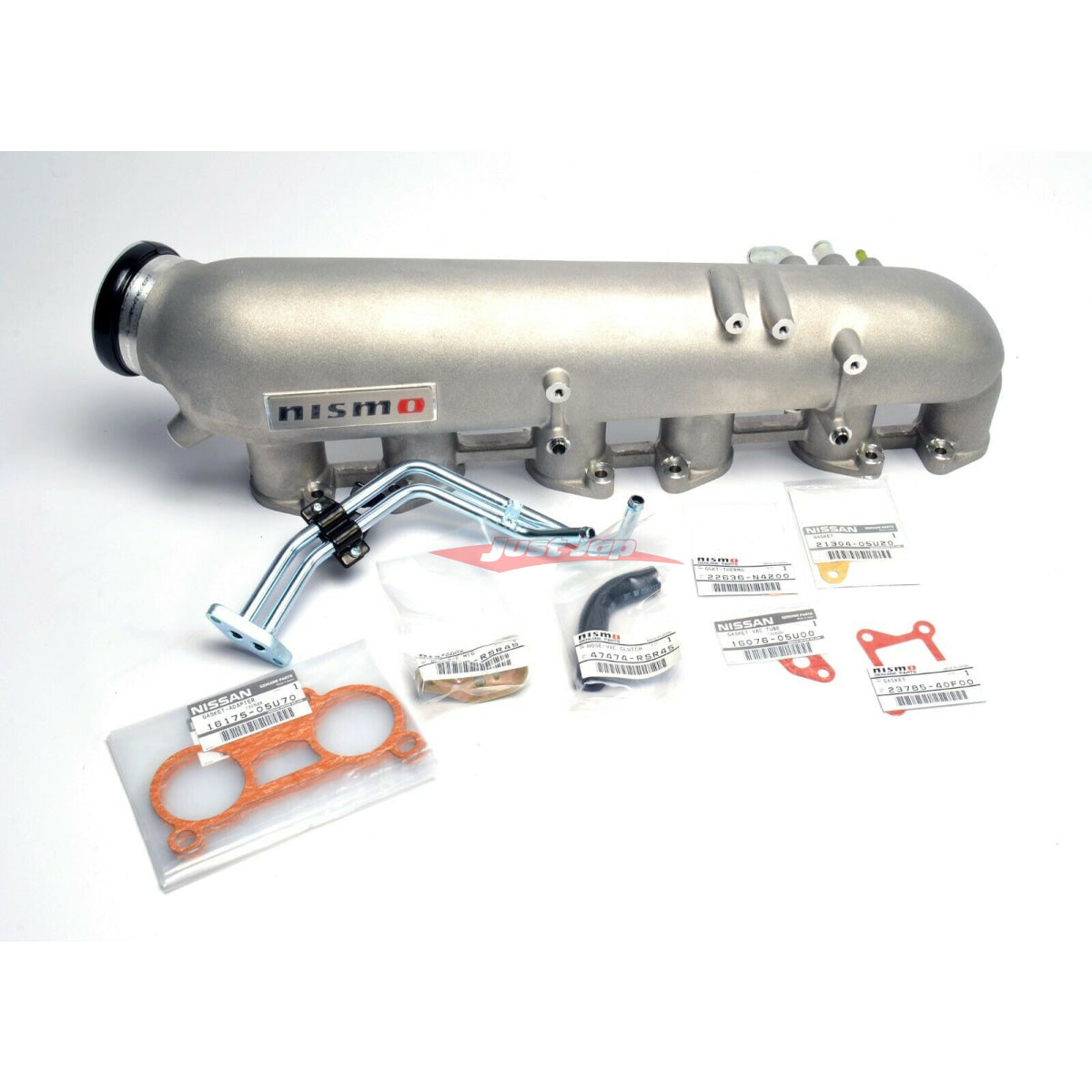

The NISMO air collector installation kit includes the intake collector, the necessary vacuum piping for the brake & clutch master, and a vacuum hose for the clutch master, bracket & gasket. This kit is including intake collector, vacuum piping for brake/clutch master, vacuum hose for clutch master, bracket, and gasket for installation.
There is a difference in turbine inlet exhaust gas temperature between the front & the rear. The overall temperature difference has been reduced drastically due to an improved & efficient intake quantity between the cylinders on both sides. (The exhaust gas temperatures at the front-rear turbine were reduced by an average of 18% from 2400 RPM to 7000 RPM)
The fuel supply density is high in order to protect the turbocharger from high exhaust gas temperatures. With the NISMO air collector, temperatures are reduced and this resulted in improved fuel economy & improved output. Both cylinders & ignition timing could be optimized because exhaust gas temperature differences become small. (At 4800 RPM to 7600 RPM, output improved by an average of 1.8%, and fuel consumption improved by an average of 0.4%)
The NISMO air collector installation kit includes the intake collector, the necessary vacuum piping for the brake & clutch master, and a vacuum hose for the clutch master, bracket & gasket. This kit is including intake collector, vacuum piping for brake/clutch master, vacuum hose for clutch master, bracket, and gasket for installation.
Vehicle Compatibility:
- Nissan BNR32 Skyline GTR
- Nissan BCNR33 Skyline GTR
- Nissan BNR34 Skyline GTR
- Nissan WGNC34 Stagea 260RS
Specifications
SKU 14110-RSR45
Availability 60-90 Days
