Linney Engineering Billet Front Crown Wheel & Pinion Fits Nissan R35 GTR2504
Quantity exceeds our current inventory for this item.
Additional items will be placed on backorder.
1In Stock - Kirrawee, NSW
Ships in 1-3 business days
Available for back order
Lead time 7-10 Days
Click & Collect available from Kirrawee, NSW
Delivery
SHIPPING INFO:
For orders dispatched from/within Australia we use the services of, Border Express, Australia Post Registered & Express, and local couriers for Sydney Metro deliveries.
Please note that in some circumstances we are not able to use your chosen shipping method.
For international orders we use the services of DHL/UPS. Please note that International Orders require longer processing times and may take up to 1-2 days to ship if the item is in stock.
ShareDescription

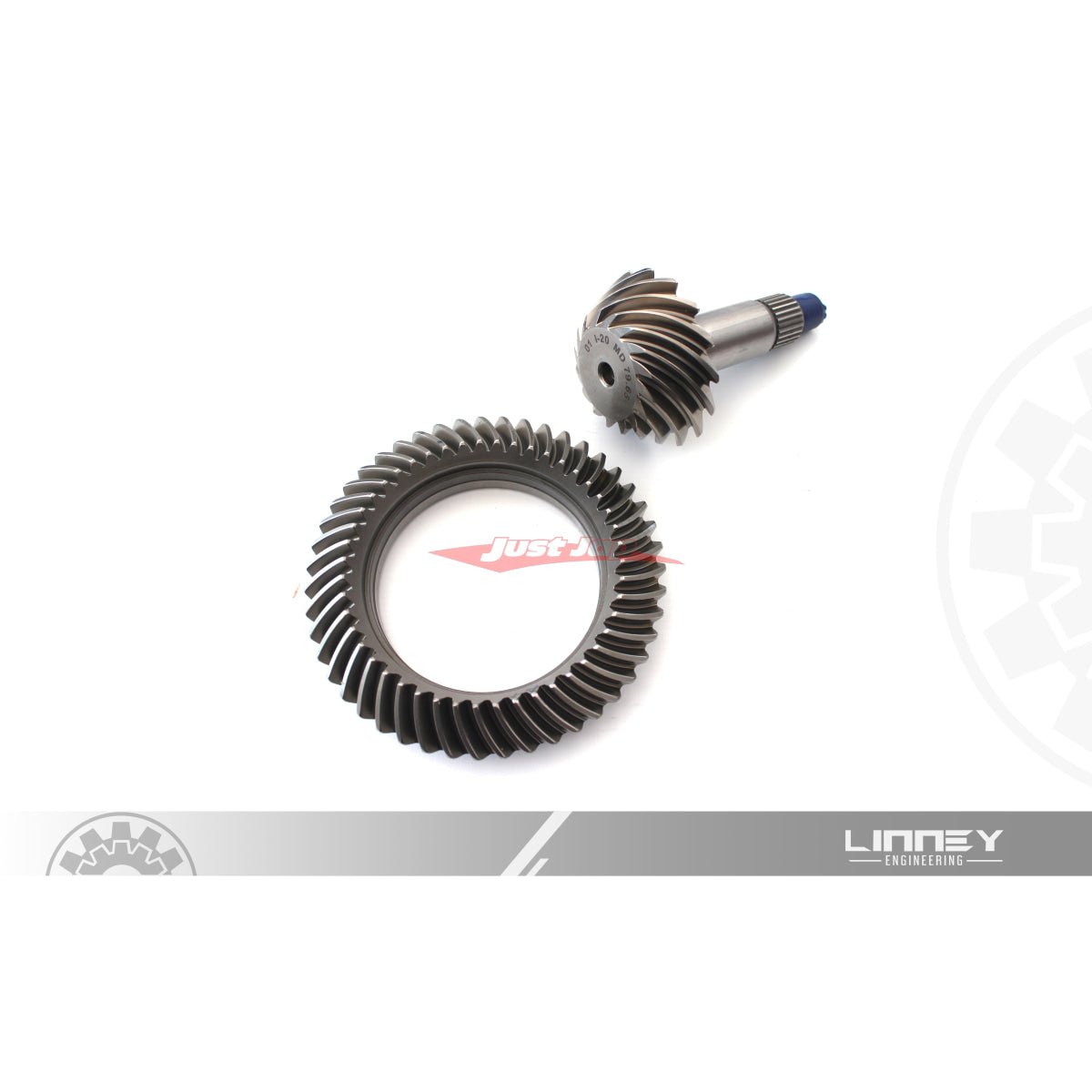

LINNEY ENGINEERING GT-R FRONT BILLET CROWN WHEEL & PINION SET
Linney Engineering Billet Front Crown Wheel & Pinion set is up to 50% stronger by design and material specifications. These gears are designed to give maximum performance while retaining OE Nissan GT-R front stock casings with no other modifications. Material specification EN36C & compatible with stock bearings.
- Face milled ground bevel gears for strength and control compared to face hobbed tooth forms
- EN36C Steel
- DIN 5 Quality
- Gear Cut – Gleason
- Gear Grind – Gleason Phoenix CNC grinder
- Gear Measurement – Gleason 475GMS CNC
- Design – Gleason software
- Shot peened
- Case harden
- Heat Treated
- Extremely smooth and quiet running
- Fits OEM and aftermarket LSD
- Fits OEM or billet casing
- Fits OEM Bearings compatible
Stock OEM Nissan GTR Ring & Pinion failure can be quite common on higher-powered vehicles, especially for Drag, Circuit, Roll racing, and other high-speed use. When this failure occurs as shown in the image below this causes catastrophic damage usually destroying the front differential & housing and also commonly damaging the engine block!
For peace of mind when building your GTR it's worth the consideration to install a set of Linney Engineering Billet Front diff gears!
Sample Image Damaged Stock R35 GT-R Front Diff Gears
GT-R Front CWP Backlash 0.10-0.15
Professional installation is essential clearance / lash / shimming is required. Incorrect setup, running low on oil, locked, and or a damaged ETS unit will cause terminal damage to your FWD.
For additional strength, it is recommended to be installed with billet differential housing to prevent bolts from backing out (OEM Nissan side bearing retainer can crack).
Billet Front Differential Housing can be found here: Boost Logic Billet Front Diff Housing
Note: There is no warranty stated or implied due to the stresses placed on your vehicle by performance parts and our inability to monitor their use, tuning, or modification.
Specifications
SKU 2504
Availability 7-10 Days
